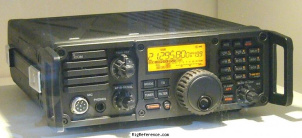

ICOM IC-7200

Desktop HF/VHF Transceiver

View all reviews (2) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-7200 rigs and spare parts on eBay Find the ICOM IC-7200 on Amazon
We receive a small fee when you buy through these links, thank you!

The ICOM IC-7200 is a robustly built amateur transceiver providing coverage of HF amateur bands plus 6 meters. Power is 100 watts. Features include easy-to-use controls, DSP filtering with 51 passband widths, digital twin passband tuning, manual notch filter, keypad entry, dual VFOs, large display, voice synthesizer, 201 memories, 20 dB attenuator, preamp, 6 kHz roofing filter, RIT, scanning, 1 Hz step tuning and more! The excellent general coverage receiver tunes from 30 kHz to 60 MHz. The meter displays Power/SWR/ALC. Power is 2 to 100 watts (40W AM).

The IC-7200 is not waterproof.

Frequency range

RX-range
RX: 0.03-60 MHz (Guaranteed range: 0.5–29.999 and 50–54.000 MHz)
TX-range
1.8–2 / 3.5–4 / 5.3305-5.4035 (USB only) / 7–7.3 / 10.1–10.15 / 14–14.35 / 18.068–18.168 / 21–21.45 / 24.89–25 / 28–29.7 / 50–54 MHz
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m
Stability
Beter than ±0.5ppm
Tuning steps
0.001 kHz
Filters
?

Receiver

Modulations
AM   CW   USB   LSB   RTTY
Sensitivity
SSB, CW < 0.16μV (1.8–29.995MHz)
SSB, CW < 0.13μV (50MHz band)
AM < 13μV (0.5–1.8MHz)
AM < 2μV (1.8–29.995MHz)
AM < 1μV (50MHz band)
Selectivity
SSB: > 2.4kHz/–6dB
SSB (BW: 2.4kHz, sharp): < 3.6kHz/–60dB
CW: > 500Hz/–6dB
CW (BW: 500Hz, sharp): < 900Hz/–60dB
RTTY (BW: 350Hz): > 360Hz/–6dB, < 650Hz/–60dB
AM (BW: 6kHz) > 6.0kHz/–6dB, > 15.0kHz/–60dB
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 64.455MHz
2nd: 455kHz
3rd: 15.625kHz
Image rejection
More than 70dB
Audio output
2 W @ 10% THD

Transmitter

Modulations
AM   CW   USB   LSB   RTTY
RF-Output
SSB/CW/RTTY: 2-100W, AM: 1-40W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
2 A max
TX
22 A max

Physical

Dimensions (w×h×d)
241 × 84 × 281 mm (9.49 × 3.31 × 11.06 in)
Weight
5.50 kg (12.1 lbs)
Form factor
Base Station
Manufactured
Between 2007 and 200x
MPN
ICOM-IC-007200

Other features

Memories
201 channels in bank(s)
Usage
Amateur / Ham radio operators
Features + options
20dB attenuator
Backlit display
DSP
Preamplifier
RIT
PC programmable via USB-connector on the rear panel (CI-V data format)
VOX
Water resistant
Accessories
?

Manuals, diagrams and brochures

ICOM IC-7200 brochure submitted by RigReference

Upload relevant documents

Show other documents.
Find the ICOM IC-7200 user manuals on eBay #ad

Reviews & stories

IC-7200

ICOM IC-7200, Desktop HF/VHF Transceiver

Great little radio. Works exceptionally well with an iMac connected via USB and running MacLoggerDX.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2010
CAD 1300.00

Exceptional Basic HF Transceiver

ICOM IC-7200, Desktop HF/VHF Transceiver

My XYL bought me the IC-7200 as a birthday gift a few years back and it was an upgrade from my IC-718, which was my first HF rig.

The 7200 is an excellent choice for the money. Thanks to the dual notch filtering, receive is very good.

I run this radio barefoot to a G5RV and have worked DX all over the world with good reports.

If you are interested in PSK31, I HIGHLY recommend the 7200 because the USB interface makes PSK31 via FLDIGI practically plug-n-play easy.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2015
USD 0.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-7200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-7200 is around:

  • GBP 0.00
  • USD 811.00
  • EUR 737.00
  • CAD 645.00
Year Historic price Condition Submitted by
2019 GBP 0.00 Used / Good John
2014 USD 900.00 New / Mint ke3oxmsd
2013 USD 849.95 Used / Good universal-radio
2013 EUR 898.00 New / Mint thiecom.de
2013 EUR 859.00 New / Mint thiecom.de
2010 USD 1059.95 New / Good universal-radio
2010 EUR 829.00 New / Good thiecom.de
2010 USD 1069.95 New / Good HRO
2010 CAD 1300.00 New / Mint atkins.david
