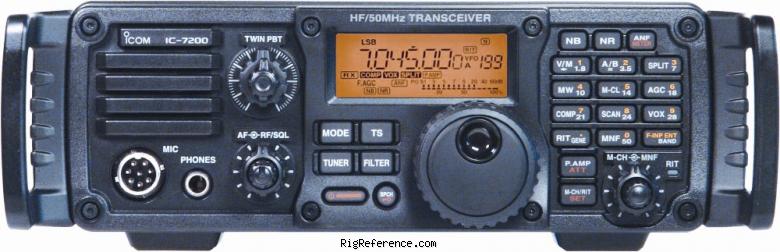

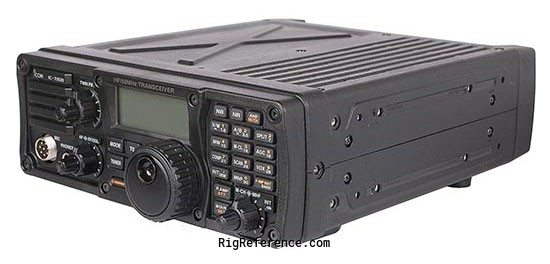

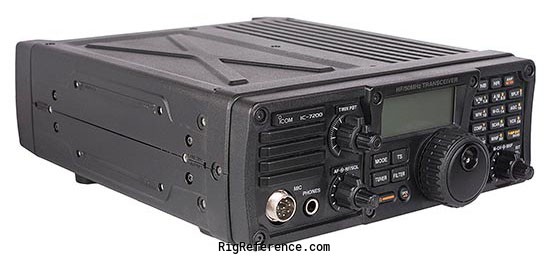

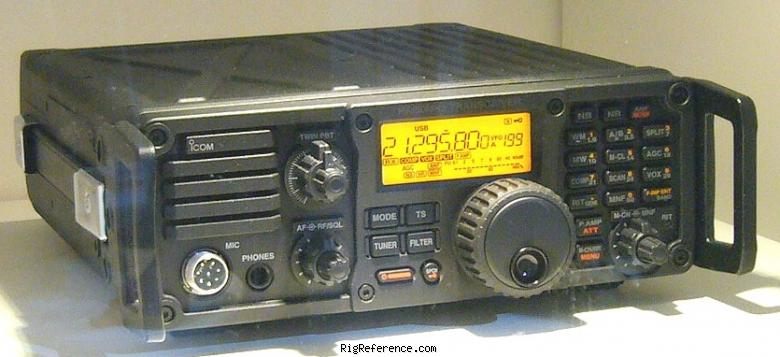

The ICOM IC-7200 is a robustly built amateur transceiver providing coverage of HF amateur bands plus 6 meters. Power is 100 watts. Features include easy-to-use controls, DSP filtering with 51 passband widths, digital twin passband tuning, manual notch filter, keypad entry, dual VFOs, large display, voice synthesizer, 201 memories, 20 dB attenuator, preamp, 6 kHz roofing filter, RIT, scanning, 1 Hz step tuning and more! The excellent general coverage receiver tunes from 30 kHz to 60 MHz. The meter displays Power/SWR/ALC. Power is 2 to 100 watts (40W AM).
The IC-7200 is not waterproof.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m
- Frequency stability
- Beter than ±0.5ppm
- Tuning steps
- 0.001 kHz
- Memories
- 201 channels in bank(s)
Receiver
- RX-range
- RX: 0.03-60 MHz (Guaranteed range: 0.5–29.999 and 50–54.000 MHz)
- Modulations
- AM CW USB LSB RTTY
- Sensitivity
- SSB, CW < 0.16μV (1.8–29.995MHz)
SSB, CW < 0.13μV (50MHz band)
AM < 13μV (0.5–1.8MHz)
AM < 2μV (1.8–29.995MHz)
AM < 1μV (50MHz band) - Selectivity
- SSB: > 2.4kHz/–6dB
SSB (BW: 2.4kHz, sharp): < 3.6kHz/–60dB
CW: > 500Hz/–6dB
CW (BW: 500Hz, sharp): < 900Hz/–60dB
RTTY (BW: 350Hz): > 360Hz/–6dB, < 650Hz/–60dB
AM (BW: 6kHz) > 6.0kHz/–6dB, > 15.0kHz/–60dB - Filters
- ?
- Receiver system
- Triple conversion superheterodyne
- IF-frequencies
- 1st: 64.455MHz
2nd: 455kHz
3rd: 15.625kHz - Image rejection
- More than 70dB
- Audio output
- 2 W @ 10% THD
Transmitter
- TX-range
- 1.8–2 / 3.5–4 / 5.3305-5.4035 (USB only) / 7–7.3 / 10.1–10.15 / 14–14.35 / 18.068–18.168 / 21–21.45 / 24.89–25 / 28–29.7 / 50–54 MHz
- Modulations
- AM CW USB LSB RTTY
- RF-output
- SSB/CW/RTTY: 2-100W, AM: 1-40W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 2 A max
- TX
- 22 A max
Physical
- Dimensions (w×h×d)
- 241 × 84 × 281 mm (9.49 × 3.31 × 11.06 in)
- Weight
- 5.50 kg (12.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 20dB attenuator
Backlit display
DSP
Preamplifier
RIT

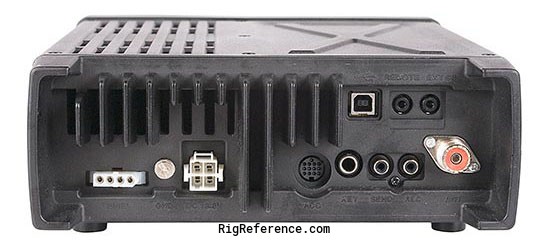

PC programmable via USB-connector on the rear panel (CI-V data format)
VOX
Water resistant - Accessories
- -
- RigReference ID
- 3137
- MPN
- ICOM-IC-007200
