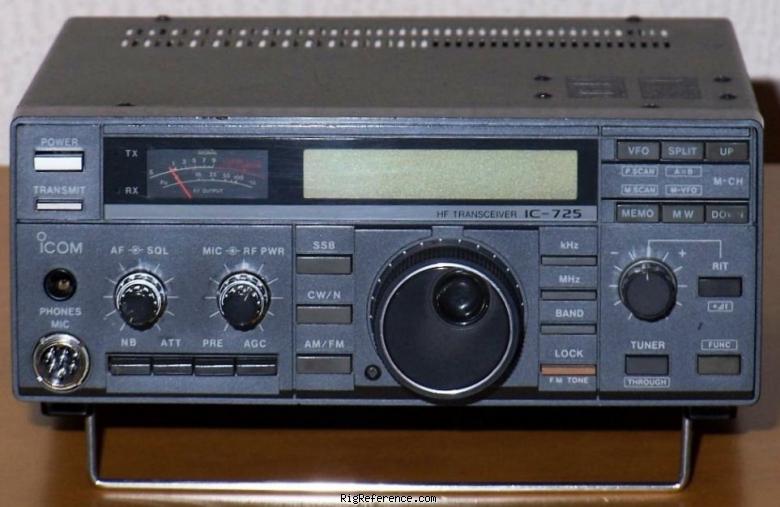

ICOM IC-725

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.5-30 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

AM: <2 µV (10 dB S/N)
FM: <0.5 µV (12 dB SINAD)
SSB/CW: <0.15 µV (10 dB S/N)

Selectivity

AM: >6 kHz (-6 dB), <20 kHz (-60 dB)
FM: >15 kHz (-6 dB), <30 kHz (-60 dB)
SSB/CW: >2.3 kHz (-6 dB), <4 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

RF-output

100 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

1.2-1.5 A

TX

Max 20 A

Physical

Dimensions (w×h×d)

241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)

Weight

4.70 kg (10.4 lbs)

Form factor

Base Station

Manufactured

Between 1988 and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3139

MPN

ICOM-IC-000725

Manuals, diagrams and brochures

Icom IC-725 Service Manual PDF - Unknown size, submitted by RigReference

Ic725 User Manual PDF - 3.12 MB, submitted by BandRunner



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-725. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-725 in Good condition is around:

• GBP 250
• EUR 300

Price History Chart

These estimates are based on the following prices:
