ICOM IC-730

Mobile Shortwave Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-730 rigs and spare parts on eBay Find the ICOM IC-730 on Amazon
We receive a small fee when you buy through these links, thank you!

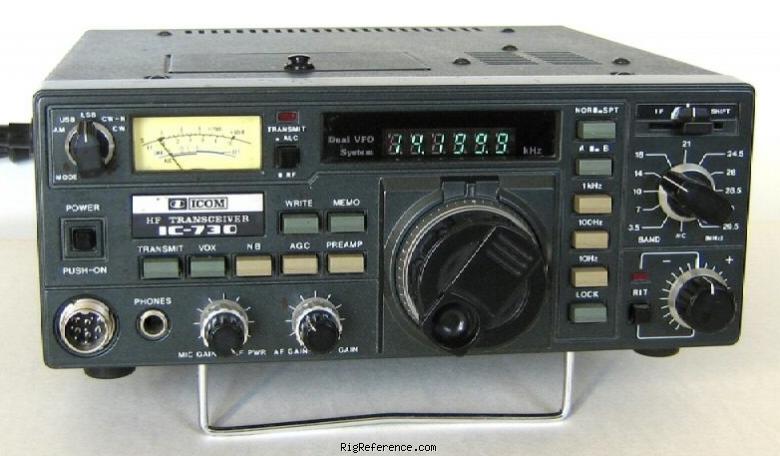

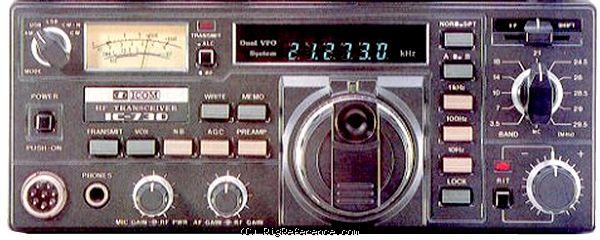

The Icom IC-730 is a compact, easy to use HF radio covering 80 through 10 meters with 200 watts PEP input SSB/CW and 40 watts AM. Modes include SSB, CW and AM. Enhancements include: dual digital VFOs, and noise blanker. The advanced, quad conversion receiver section includes selectable AGC and a preamp. You get one memory per band. Frequency coverage is: 3.5-4, 7-7.3, 10-10.5 (receive), 14-14.35, 18-18.5, 21-21.45, 24.5-25 and 28-29.7 MHz. There is a built-in speaker in the top panel. The rear panel features an SO-239 antenna jack, speaker jack, 1/4 inch key jack and accessory port. An access door on the top panel allows for additional radio settings and installation of optional EX-195.

Frequency range

RX-range
10-80 m + WARC
TX-range
10-80 m + WARC
HAM bands
80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Stability
?
Tuning steps
0.001 / 0.1 / 1 kHz
Filters
?

Receiver

Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
AM   CW   SSB
RF-Output
100 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
20 A max.

Physical

Dimensions (w×h×d)
241 × 94 × 275 mm (9.49 × 3.70 × 10.83 in)
Weight
?
Form factor
Mobile
Manufactured
Between 1981 and 198x
MPN
ICOM-IC-000730

Other features

Memories
8 channels in 8 bank(s)
Usage
Amateur / Ham radio operators
Features + options
RIT
Dial lock
Noise Blanker
Preamp
Dual Digital VFOs
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-730 user manuals on eBay #ad

Reviews & stories

ICOM 730

ICOM IC-730, Mobile Shortwave Transceiver

Got this one for a while, works nice, great power.

Only one problem: every 500 hz the actual freq jumps back ~ 200 hz.

Suspect the PLL chip.

Written by Dan on Nov 9, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2010
USD 75.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-730. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-730 is around:

  • USD 42.00
Year Historic price Condition Submitted by
2010 USD 85.00 Used / Okay Dan
2010 USD 85.00 Used / Good Dan
2008 USD 235.00 Used / Good ZedderBRL
2008 USD 175.00 Used / Okay ZedderBRL
