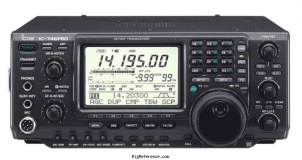

ICOM IC-746 Pro

Desktop HF/VHF Transceiver

View all reviews (5) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-746 Pro rigs and spare parts on eBay Find the ICOM IC-746 Pro on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
0.03-60 / 108-174 MHz
TX-range
10-160 m + WARC / 50-54 / 144-148 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   CW   SSB   RTTY
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
AM   FM   CW   SSB   RTTY
RF-Output
5-100 W (AM: 5-40 W)

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
2.2-3 A
TX
Max 23 A

Physical

Dimensions (w×h×d)
287 × 120 × 316 mm (11.30 × 4.72 × 12.44 in)
Weight
9.00 kg (19.9 lbs)
Form factor
Base Station
Manufactured
Between 2001 and 200x in Japan
MPN
ICOM-IC-000746-PRO

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
32 bit DSP, CI-V Auto-ATU: 17-150 ohms (HF), 20-125 ohms (6 m)
Accessories
?

Reviews & stories

Great Rig with no issues at all

ICOM IC-746 Pro, Desktop HF/VHF Transceiver

I have owned this rig since 2001 and have had none of the backlight or final transistor amp issues that thr rig is famous for. I have made many, many contacts using only a Cushcraft R8 vertical and the internal tuner. The rig has always been in my shack except for being used in 4 field day events and it will be used in 2011 as well. I do both phone and cw with great success. DX contacts are plentiful and busting through pile ups also work well when I use my 811. I will admit I am going to purchase a Flex 3000 and move the 746 pro to a back up role only because it has fulfilled it's duty and I want to try SDR.
W2LGA

Written by rerun on May 25, 2011

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2001
USD 1496.00

Well Worth the price in performance!

ICOM IC-746 Pro, Desktop HF/VHF Transceiver

I have owned this rig for 10 years now and it is always the one that everyone wants to work at our annual Field Day event! I have the a seven digit serial number rig so no early issue problems, from 80 - 2 meters with my R8 and end feed antenna system I work all over the world and keep up with my local club events as well. I also have three other rigs but the 746pro is and always has been my work horse. Sorry ICOM has drop it from the line but I hope the new pups will carry on the tradition as well!!! W2LGA

Written by rerun on May 20, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2004

Top Notch

ICOM IC-746 Pro, Desktop HF/VHF Transceiver

Amazing compact transceiver with lots of features. Can't go wrong with this one.

Written by N4NDX on Oct 16, 2014

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2012
USD 0.00
View all 5 reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-746 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-746 Pro is around:

  • USD 706.00
  • AUD 289.00
Year Historic price Condition Submitted by
2017 USD 710.00 Used / Good Rodgerzk
2010 USD 989.95 New / Good universal-radio
2005 AUD 1800.00 Used / Good MrBones
2001 USD 1496.00 New / Mint rerun
