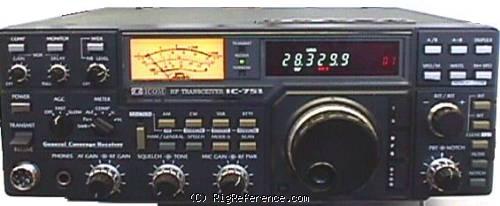

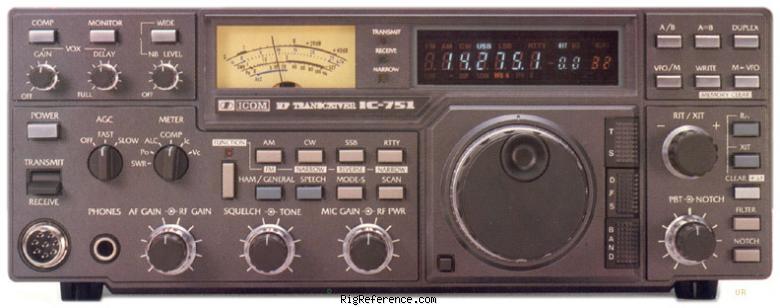

The ICOM IC-751 is an advanced transceiver covering 160 to 10 meters. It features a high performance 100 kHz to 30 MHz general coverage receiver built in. Output is 10 to 100 watts SSB/CW/RTTY modes (10 to 40 watts AM). The IC-751 has sophisticated capabilities such as: dual digital VFOs, all-mode squelch, Notch, Passband Tuning, RIT/XIT, pre-amp and attenuator. You also get 32 memories. The two color flourescent digital display is easy to read. There is a multi-function meter. Serious CW operators will appreciate the full and semi break-in capability. The IC-751 has a high quality FL-44A 500 Hz SSB filter. The rear panel has an SO-239 antenna jack plus a receive only RCA phono jack. This radio comes with the HM-12 hand mic.
The IC-751 has a battery-backed BIOS-RAM. There is a special procedure to replace the battery. If the procedure is not followed the radio might not survive!
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- 32 channels in 1 bank(s)
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW USB LSB RTTY
- RF-output
- SSB/CW/FM: 10-100W (200W input), AM: 10-40W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 20 A max
Physical
- Dimensions (w×h×d)
- 306 × 115 × 349 mm (12.05 × 4.53 × 13.74 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1983 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3158
- MPN
- ICOM-IC-000751
Manuals, diagrams and brochures
- ICOM IC-751 Adjustment.pdf PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-751. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-751 is around:
- USD 20.00 ~ USD 10.00
These estimates are based on the following prices:
