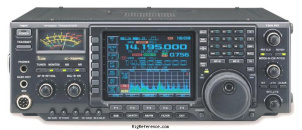

ICOM IC-756 Pro

Desktop HF/VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (3) Compare

The ICOM IC-756 Pro is a desktop HF/VHF transceiver. It covers 0.03-60 MHz in receive and 10-160 m + WARC/50-54 MHz in transmit. The receiver system is a triple-conversion superheterodyne with IF frequencies of 1st: 64.455 MHz, 2nd: 455 KHz, and 3rd: 36 KHz. Image rejection is >70 dB. RF output is 5-100 W (AM: 5-40 W). It features 1 memory bank with 99 channels. The IC-756 Pro includes IF-DSP, built-in auto-AT, built-in keyer and RTTY demodulator, and twin RX. Dimensions are 111 × 340 × 285 mm. Current drain is Max 3.5 A in receive and Max 23 A in transmit.

General characteristics

HAM bands: 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
Frequency stability: ?
Tuning steps: ?
Memories: 99 channels in 1 bank(s)

Receiver

RX-range: 0.03-60 MHz
Modulations: AM FM CW SSB RTTY
Sensitivity: AM (10 dB S/N)
0.5-1.8 MHz: 13 µV
1.8-30 MHz: 2 µV (Pre-amp 1 on)
50-54 MHz: 1 µV
FM (12 dB SINAD)
28-30 MHz: 0.5 µV (Pre-amp 1 on)
50-54 MHz: 0.32 µV (Pre-amp 2 on)
SSB/CW/RTTY (10 dB S/N)
1.8-30 MHz: 0.16 µV (Pre-amp 1 on)
50-54 MHz: 0.13 µV (Pre-amp 2 on)
Selectivity: AM (BW=6 kHz)
>6 kHz (-6 dB), <15 kHz (-60 dB)
FM (BW=15 kHz)
>12 kHz (-6 dB), <20 kHz (-60 dB)
SSB/RTTY (BW=2.4 kHz)
>2.4 kHz (-6 dB), <2.8 kHz (-60 dB)
CW (BW=500 H
Filters: ?
Receiver system: Triple-conversion superheterodyne
IF-frequencies: 1st: 64.455 MHz
2nd: 455 KHz
3rd: 36 KHz
Image rejection: >70 dB
Audio output: ?

Transmitter

TX-range: 10-160 m + WARC/50-54 MHz
Modulations: AM FM CW SSB RTTY
RF-output: 5-100/5-100 W (AM: 5-40 W)

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: Max 3.5 A
TX: Max 23 A

Physical

Dimensions (w×h×d): 340 × 111 × 285 mm (13.39 × 4.37 × 11.22 in)
Weight: 9.60 kg (21.2 lbs)
Form factor: Base Station
Manufactured: Between 2000 and 2001 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: IF-DSP. Built-in auto-AT (HF: 16.7-150 ohms / 6 m: 20-125 ohms) Built-in keyer and RTTY demodulator. Twin RX
Accessories: -
RigReference ID: 3161
MPN: ICOM-IC-000756-PRO

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: ICOM IC-756Pro Advanced Operating Guide.pdf PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-756 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-756 Pro in Good condition is around:

USD 413 ~ USD 826

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2021	USD 100.00	Used / Mint	Mark
2009	USD 750.00	Used / Good	dweiss
2004	USD 1200.00	Used / Mint	KenH
