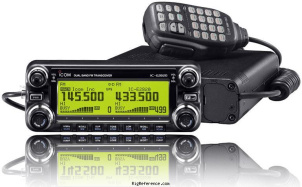

ICOM IC-E2820

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM IC-E2820 rigs and spare parts on eBay Find the ICOM IC-E2820 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
118-550 / 810-999.99 MHz
TX-range
144-146 / 430-440 MHz (Europe)
HAM bands
?
Stability
?
Tuning steps
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Filters
?

Receiver

Modulations
AM   FM   N-FM   DV
Sensitivity
<0.18 µV (12 dB SINAD)
Selectivity
FM: 10 kHz (-6 dB), 30 kHz (-60 dB)
FM-N: 6 kHz (-6 dB), 20 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
>60 dB
Audio output
?

Transmitter

Modulations
FM   N-FM   DV
RF-Output
High: 50/50 W, Medium: 15/15 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
1.2-1.8 A
TX
Max 13 A

Physical

Dimensions (w×h×d)
150 × 40 × 188 mm (5.91 × 1.57 × 7.40 in) controller: 1505832 mm
Weight
2 gr (0.1 oz) Main unit + Controller
Form factor
Mobile
Manufactured
Between 2007 and 200x in Japan
MPN
ICOM-IC-E002820

Other features

Memories
522 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
DTMF. CTCSS. DV/GPS option (UT-123) Diversity reception. Twin RX.
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the ICOM IC-E2820 user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used ICOM IC-E2820. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-E2820 is around:

  • EUR 422.00
Year Historic price Condition Submitted by
2013 EUR 515.00 New / Mint thiecom.de
2010 EUR 515.00 New / Good thiecom.de
