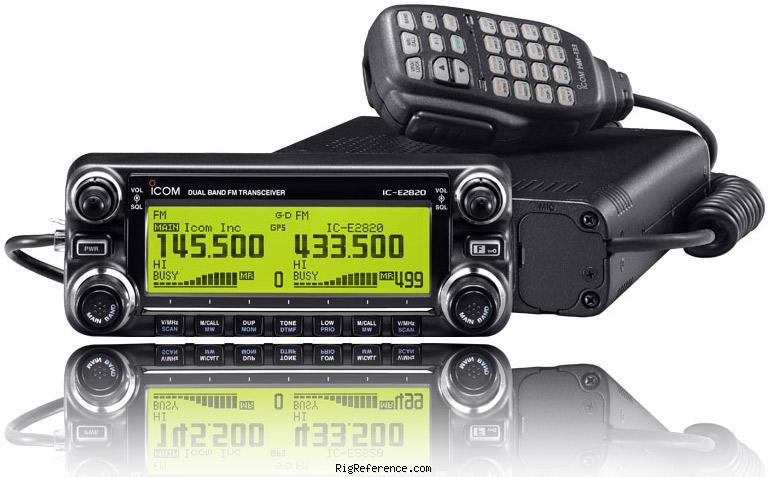

ICOM IC-E2820

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (2) Compare

The ICOM IC-E2820 is a Mobile VHF/UHF Transceiver. It covers 118-550 / 810-999.99 MHz (receive) and 144-146 / 430-440 MHz (transmit, Europe). The transceiver features twin RX and diversity reception. Tuning steps are selectable from 5/6.25/10/12.5/15/20/25/30/50 kHz. RF output is selectable between High: 50/50 W, Medium: 15/15 W, and Low: 5/5 W. It has 1 memory bank with 522 channels. The IC-E2820 includes features such as DTMF, CTCSS, and a DV/GPS option (UT-123). Current drain is 1.2-1.8 A (receive) and Max 13 A (transmit). Dimensions are 40 × 150 × 188 mm. The main unit plus controller weighs 1.7 gr.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 522 channels in 1 bank(s)

Receiver

RX-range: 118-550 / 810-999.99 MHz
Modulations: AM FM N-FM DV
Sensitivity: <0.18 µV (12 dB SINAD)
Selectivity: FM: 10 kHz (-6 dB), 30 kHz (-60 dB)
FM-N: 6 kHz (-6 dB), 20 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: >60 dB
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz (Europe)
Modulations: FM N-FM DV
RF-output: High: 50/50 W, Medium: 15/15 W, Low: 5/5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: 1.2-1.8 A
TX: Max 13 A

Physical

Dimensions (w×h×d): 150 × 40 × 188 mm (5.91 × 1.57 × 7.40 in) controller: 1505832 mm
Weight: 2 gr (0.1 oz) Main unit + Controller
Form factor: Mobile
Manufactured: Between 2007 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF. CTCSS. DV/GPS option (UT-123) Diversity reception. Twin RX.
Accessories: -
RigReference ID: 3192
MPN: ICOM-IC-E002820

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-E2820. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-E2820 in Good condition is around:

EUR 387 ~ EUR 515

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	EUR 515.00	New / Mint	thiecom.de
2010	EUR 515.00	New / Good	thiecom.de
