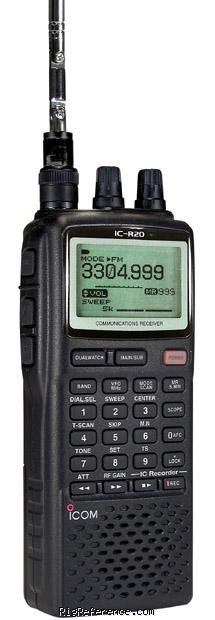

Tune in the world where ever you go. The ICOM R20-06 has extremely wide coverage from 150 kHz to 3304.999 MHz (less 824-849 & 869-894 MHz cellular). Modes of reception include: FM, WFM AM, (SSB) USB, LSB, CW. This radio has two VFOs with dual watch capability. A built-in 32 MB IC audio recorder can record 1, 2 or 4 hours of reception (playback quality will be less on 2 or 4 hour settings). A total of 1250 memories are featured: 1000 regular, 25 scan edge and 200 auto-write scan. And this is Icom's fastest scanning radio at 100 channels per second in VFO mode. There are three types of priority watch: Memory Channel Watch, Memory Scan Watch and VFO Scan Watch. The R20 offers six forms of scanning. Scan resume can even be adjusted for 2 to 20 seconds or unlimited. CTCSS/DTCS/DTMF decode is built-in. The large two line dot-matrix LCD can be programmed for 8 character channel names.
You can see your signals with the built-in band scope. The sweep range can be selected from ±14 kHz to ±1400 kHz. Other advanced features include: Voice Scan Control (opens squelch only when a modulated signal is detected), Auto Squelch, Attenuator, key lock, RF Gain, Noise Blanker, ANL and AF filter. A built-in ferrite bar antenna improves medium wave reception. Weather channels and weather alert (USA version only) are featured. CI-V PC control compatibility is supported with optional CT-17. Simple PC programming and cloning is available via the optional CS-R20 software CD (with USB cable).
The special Set Mode Menu allows you to tailor many operational parameters to your personal taste including: Priority Watch, Key-touch beep, beep level, power save, NB/ANL/AF filter functions, AM antenna selection, scope audio, dial speed, etc.
*) Selectable depending on operating bands.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.01 / 0.1 / 5 / 6.25 / 8.33* / 9* / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 kHz
- Memories
- 1250 channels in 1 bank(s)
Receiver
- RX-range
- 0.15-3305 MHz (less cellular in the US)
- Modulations
- AM FM W-FM CW USB LSB
- Sensitivity
- FM (12dB SINAD)
1.620– 4.999MHz 0.56μV
5.000– 221.999MHz 0.4μV
330.000– 832.999MHz 0.56μV
833.000– 1304.999MHz 0.71μV
1330.000–2304.999MHz 5.6μV
2330.000– 2999.999MHz 18μV
W-FM (12dB SINAD)
76.000– 108.000MHz 1.8μV
175.000– 221.999MHz 1.8μV
470.000– 769.999MHz 2.5μV
AM (10dB S/N)
0.495– 4.999MHz 2.2μV
5.000– 29.999MHz 1.4μV
118.000– 135.999MHz 1.4μV
SSB, CW 10dB S/N)
0.495– 4.999MHz 0.4μV
5.000– 29.999MHz 0.25μV
50.000– 53.999MHz 0.25μV
118.000– 146.999MHz 0.25μV
330.000– 469.999MHz 0.32μV - Selectivity
- SSB, CW: > 1.8kHz/–6dB
AM, FM: > 12kHz/–6dB, < 30kHz/–60dB
W-FM: > 150kHz/–6dB - Filters
- ?
- Receiver system
- Triple conversion superheterodyne + down converter
- IF-frequencies
- ?
- Image rejection
- 1st: 266.7 MHz, 429.1 MHz 2nd: 19.65 MHz 3rd: 450 kHz
- Audio output
- 100mW typ. at 10% distortion with an 8Ω load
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 3.7-4.5V DC (Re-chargeable Li-Ion battery pack or 3AA/R6 alkaline) or 6V DC ±5% (external)
- Current drain RX
- 35-150 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 60 × 142 × 34.8 mm (2.36 × 5.59 × 1.37 in)
- Weight
- 320 gr (11.3 oz) with antenna and BP-206
- Form factor
- Handheld
- Manufactured
- Between 2004 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- VSC. Internal ferrite bar antenna for MW reception. NB & ANL. CI-V. CTCSS & DCS decoder. Digital recorder up to 4 hours. Twin RX.
- Accessories
- -
- RigReference ID
- 3215
- MPN
- ICOM-IC-R000020
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R20. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-R20 is around:
- EUR 344.00
- USD 58.00 ~ USD 147.00
These estimates are based on the following prices:
