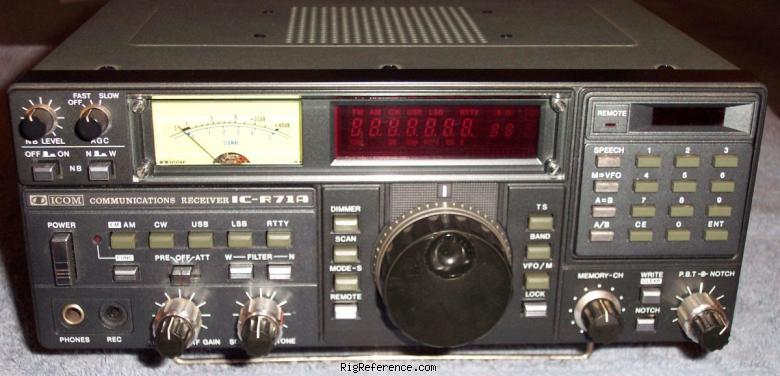

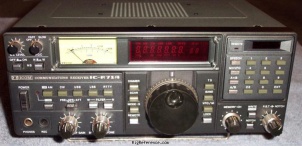

ICOM IC-R71A

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

32 channels in 1 bank(s)

Receiver

RX-range

0.1-30 MHz

Modulations

AM   FM   CW   SSB   RTTY

Sensitivity

AM (10 dB S+N/N)
0.1-1.6 MHz: 3 µV
1.6-30 MHz: <0.5 µV
SSB/CW/RTTY (10 dB S+N/N)
0.1-1.6 MHz: 1 µV
1.6-30 MHz: <0.15 µV
FM (10 dB SINAD)
1.6-30 MHz: <0.3 µV

Selectivity

AM: 2.7-6 kHz (-6 dB), 15 kHz (-50 dB)
SSB/CW/RTTY: 0.5-2.3 kHz (-6 dB), 4.2 kHz (-60 dB)
CW-N/RTTY-N: 500 Hz (-6 dB), 1.5 kHz (-60 dB)
FM: 15 kHz (-6 dB), 25 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

>60 dB

Audio output

?

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains (13.8V DC option)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

286 × 111 × 276 mm (11.26 × 4.37 × 10.87 in)

Weight

7.50 kg (16.5 lbs)

Form factor

Base Station

Manufactured

Between 1984 and 1996

Other features

Usage

Amateur / Ham radio operators

Features + options

PBT

Accessories

-

RigReference ID

3223

MPN

ICOM-IC-R000071A

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R71A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM IC-R71A in Good condition is around:

• USD 267 ~ USD 547

Price History Chart

These estimates are based on the following prices:
