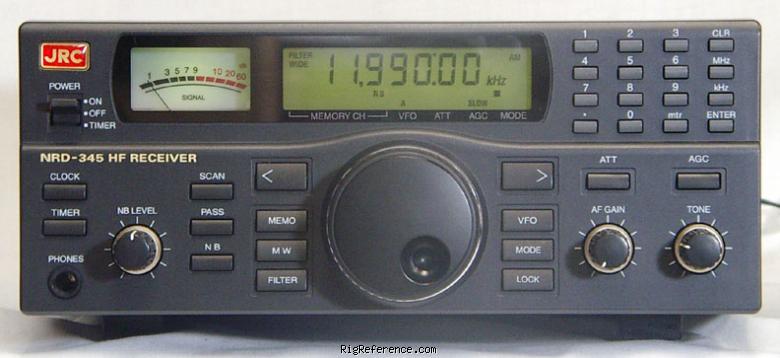

The Japan Radio Company NRD-345 offers J.R.C. performance and quality at a surprisingly affordable price. This incredibly attractive and compact radio delivers hour-after-hour of listening pleasure with high dynamic range and synchronous AM detection to help tame fading. Dual IF filters are supplied, with a third optional position available. (Installation of a third filter requires the CFQ-8673 Filter Board).
Tuning the radio is smooth as silk via the large indented main tuning knob. Of course keypad entry in kHz or MHz is also available. The easy-to-read LCD type display shows you the precise frequency to 10 Hz! The variable Noise Blanker is effective against pulse and ignition interference. The sophisticated memory system stores 100 channels with frequency, mode, AGC, attenuator, VFO, bandwidth and NB status parameters all stored. Both memory and frequency scanning are supported. The Clock-Timer function enables the radio to turn on and off at a specific time and the clock can be set for UTC or local time. The Tone Control, AGC and 20 dB Attenuator let you refine the signal to your personal taste. The NRD-345 has an analog S-meter.

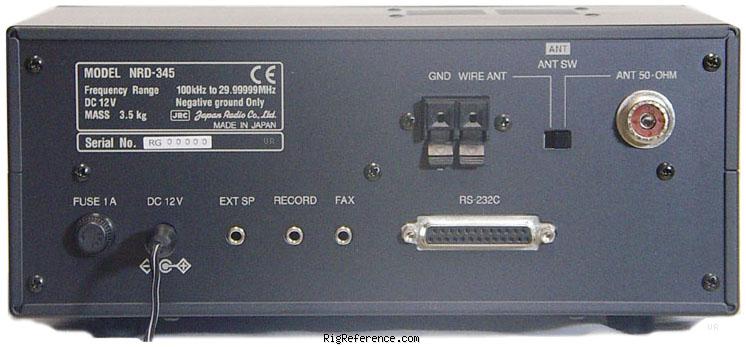

Other refinements include an analog S-Meter, Tilt-Bar, Up/Down Tuning buttons, Dual VFOs and Dial Lock. Rear panel jacks include: External Speaker, Record Jack, FAX/RTTY Line Out and dB-25 RS-232C port. The rear panel features switch selectable switchable dual antenna inputs are featured to support both wire-type or coaxial-type lead ins. A built-in RS-232 port facilitates connecting a personal computer (4800 baud, 1 start bit, 8 data bits, no parity, 1 stop bit).
General characteristics
- HAM bands
- ?
- Frequency stability
- ± 10 p.p.m. 5-60 mins. ± 2 p.p.m. > 60 mins.
- Tuning steps
- 10 / 100 Hz, 1 / 10 kHz
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM AM-sync CW SSB RTTY FAX
- Sensitivity
- 0.3µV SSB 1.8-30 MHz (10 dB S+N/N)
- Selectivity
- AM: 4.0 kHz
SSB/CW: 2.0 kHz - Filters
- ?
- Receiver system
- Double Conversion Superhet.
- IF-frequencies
- ?
- Image rejection
- > 70 dB
- Audio output
- 1W at 8 Ohms
Connections
- Antenna
- -
- Impedance
- 50/450Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- Max 900 mA @ 12 V DC
- TX
- -
Physical
- Dimensions (w×h×d)
- 250 × 100 × 240 mm (9.84 × 3.94 × 9.45 in)
- Weight
- 3.50 kg (7.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- RS-232C (4800bps)
- Accessories
- -
- RigReference ID
- 3294
- MPN
- JRC-NRD-000345
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used JRC NRD-345. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the JRC NRD-345 is around:
- EUR 16.00 ~ EUR 35.00
These estimates are based on the following prices:
