General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
?
Memories
4 channels in 1 bank(s) @ 2 channels/second

Receiver

RX-range
144-148 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-148 MHz
Modulations
FM
RF-output
High: 15 W, Low: 1 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
330-450 mA
TX
1.1-3.2 A

Physical

Dimensions (w×h×d)
180 × 60 × 195 mm (7.09 × 2.36 × 7.68 in)
Weight
?
Form factor
Mobile
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3316
MPN
KDK-FM-002015R

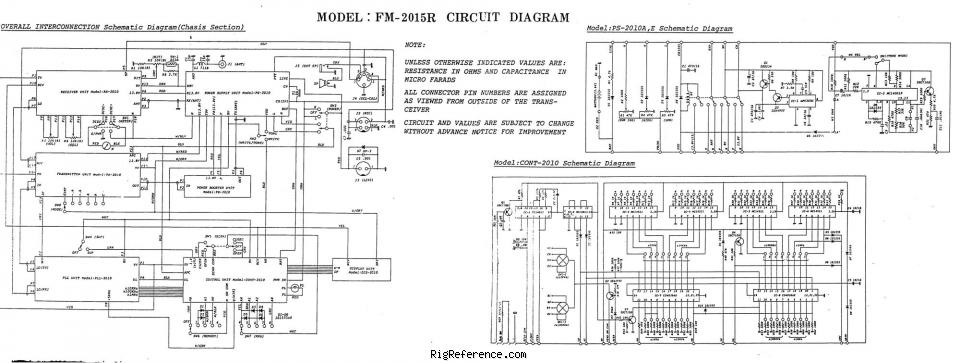

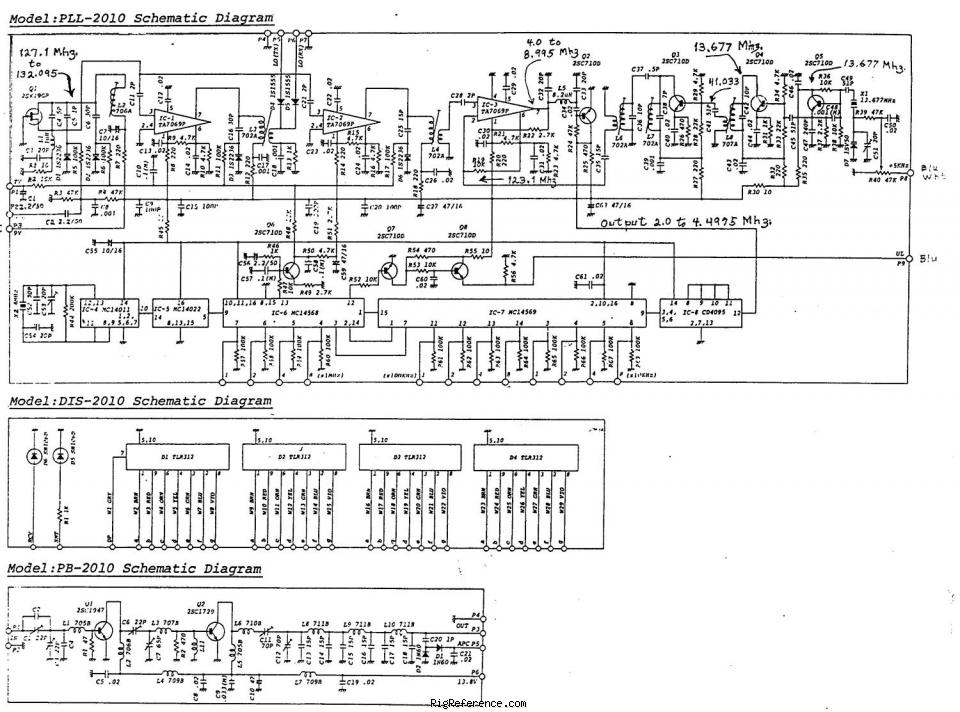

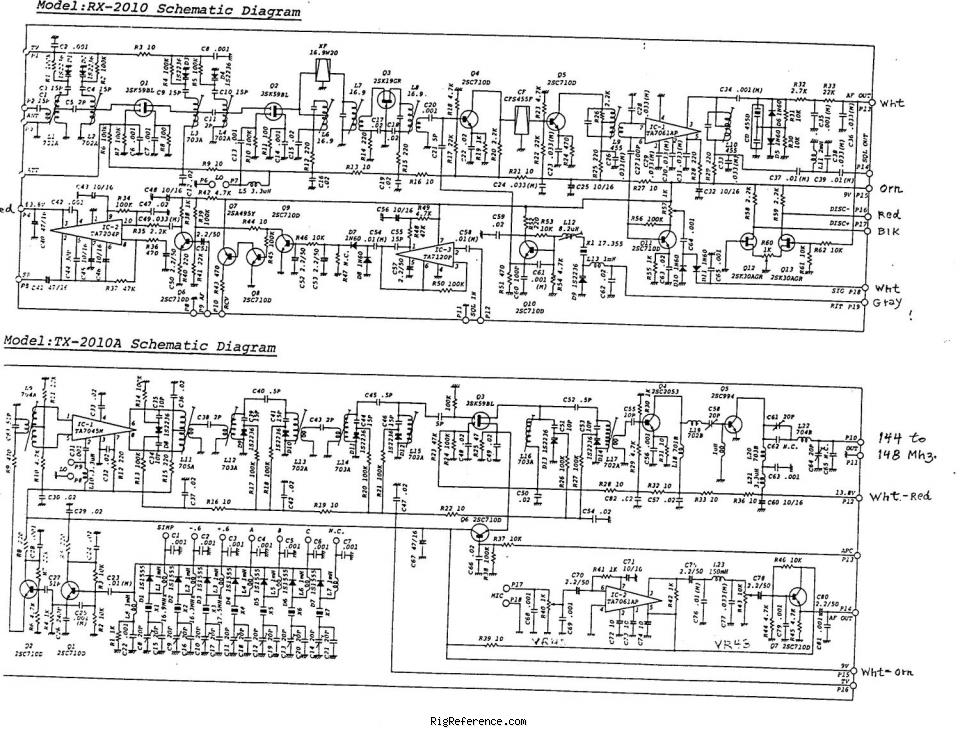

Manuals, diagrams and brochures

KDK FM-2015R Operators Instructions PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
KDK 2015R the FM Standard - in the 70's 11 years ago by Bill
GREAT RIG! 12 years ago by Beasley

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-2015R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the KDK FM-2015R is around:

  • USD 49.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2021 USD 50.00 Used / Good Dave
