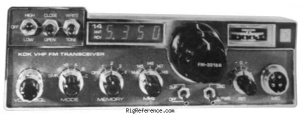

The KDK FM-2015R is a Mobile VHF Transceiver. It covers 144-148 MHz for both receive and transmit. The RF output power is selectable between High: 15 W and Low: 1 W. It has 1 memory bank with 4 channels. Power requirements are 13.8V DC. Current drain in receive mode is 330-450 mA, and 1.1-3.2 A in transmit mode. Dimensions are 60 × 180 × 195 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 4 channels in 1 bank(s) @ 2 channels/second
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 15 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 330-450 mA
- TX
- 1.1-3.2 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 195 mm (7.09 × 2.36 × 7.68 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3316
- MPN
- KDK-FM-002015R
Manuals, diagrams and brochures
- KDK FM-2015R Operators Instructions PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| KDK 2015R the FM Standard - in the 70's | 16 years ago by Bill | |
| GREAT RIG! | 16 years ago by Beasley |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used KDK FM-2015R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the KDK FM-2015R in Good condition is around:
- USD 50
These estimates are based on the following prices:
