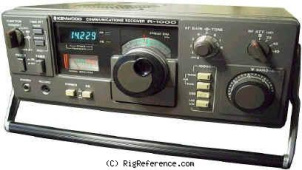

Kenwood R-1000 Desktop Shortwave receiver

 (4.1/5)  Add a story   View all stories (3)   Add to my shack



Frequency range

RX-range
0.2-30 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   SSB
Sensitivity
AM (10 dB S+N/N)
0.2-2 MHz: 20 µV
2-30 MHz: 2 µV
SSB (10 dB S+N/N)
0.2-2 MHz: 0.2-2 MHz: 5 µV
2-30 MHz: 0.5 µV
Selectivity
AM Wide: 12 kHz (-6 dB), 25 kHz (-50 dB)
AM Narrow: 6 kHz (-6 dB), 18 kHz (-50 dB)
SSB/CW: 2.7 kHz (-6 dB), 5 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 48.055 MHz
2nd: 455 KHz
Image rejection
>60 dB
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239
Impedance
50/1000Ω

Electrical

Power requirements
Mains (12V DC option, DCK-1)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
300 × 115 × 218 mm (11.81 × 4.53 × 8.58 in)
Weight
5.50 kg (12.1 lbs)
Form factor
Base Station
Manufactured
Between 1979 and 1985 in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
12hr clock and timer
Accessories
-

Manuals, diagrams and brochures

Kenwood R-1000 Schematic Diagram submitted by RigReference
Kenwood R-1000 Service Manual submitted by RigReference
Kenwood R-1000 User Manual submitted by RigReference

Upload relevant documents

Show other Kenwood documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Kenwood R-1000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Kenwood R-1000 might be around:

  • GBP 139.00
  • USD 225.00
Price Condition Year User
USD 249.95 Good / Used 2013 universal-radio
USD 225.00 Good / Used 2007 Radio10
USD 150.00 Good / Used 2010 jimimaxi2
USD 250.00 Mint / New 1980 HAMMERHEAD46
USD 350.00 Good / Used 1992 rreh917
GBP 140.00 Mint / Used 2017 jbeggs

To submit a price, please login or register an account.

Stories & reviews

Its decent but not really for Dx'ing.

Kenwood R-1000, Desktop Shortwave receiver

I've owned a couple of R1000's. The rig has a 'regal' reputation (5-stars almost every where you look) that I don't believe it deserves. Its ok, its decent, but definitely isn't one of the quieter receivers you can have. Seems to have much white noise coming from the synthesizer. As a result weak utility stations usually don't come through too well on this radio. Selectivity is ok -- not bad but nothing to rave about either. Overall sensitivity is fair to good. The R-1000 has its die hard fans, but if you want a no frills receiver that's high-performing I honestly think the Lowe HF-150 is a better choice.

Written by Radio10 on May 3, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2007
USD 225.00

Funnest shortwave rig I've ever had, and simple.

Kenwood R-1000, Desktop Shortwave receiver

A very no thrills rig for seasoned DX'ers, but still a great rig for beginners, and just a fun rig to tune. Yeah, not the most sensitive, not the most selective, but very, very, easy to operate. Definitely add-on an EXT speaker to take advantage of its audio quality. This rig may drift almost 500Hz, but rock solid after a 30min warm-up. Only a big deal with SSB and CW. The power supply built-in does add to the heat of this rig, and if you can run it with EXT +12VDC, it would be best to do so. (This is probably one of the biggest 1980's Kenwood gripes is their power supplies.) Kicking myself for getting rid of this rig 20 years ago. Still, if you're looking for the perfect shortwave starter rig for yourself, a friend, and even your kids, this is the rig to get. Biggest gripe? No FM, but you can still do slope detection for that.

Written by rreh917 on Dec 22, 2016

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 1992
USD 350.00

Lovely simple receiver

Kenwood R-1000, Desktop Shortwave receiver

Only had mine a few months (got it on Ebay). It is mint and works like new (lucky me!). Well built with good layout. Easy to use. Not quite as sensitive as my new Tecsun PL660 but then it is about 40 years old! Top speaker gives decent audio - no need for an external. No BFO or fine tune, but the tuning dial is well geared and silky smooth. With a fairly steady hand one can separate SSB quite well.

Written by jbeggs on Feb 14, 2017

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2017
GBP 140.00
