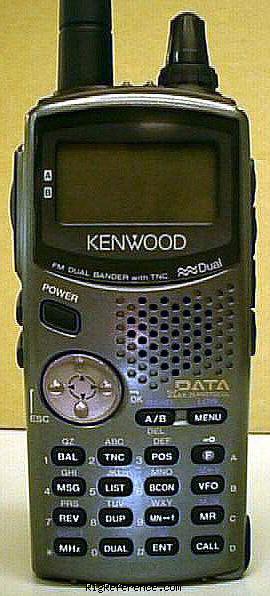

Kenwood TH-D7A(G)

Handheld VHF/UHF Transceiver

View all reviews (2) Add a review Add to my shack



Login or Register to upload images

Find Kenwood TH-D7A(G) rigs and spare parts on eBay Find the Kenwood TH-D7A(G) on Amazon
We receive a small fee when you buy through these links, thank you!

Enhanced version with dual speed TNC, 1750Hz tone burst option and several other updates in TNC firmware.

Frequency range

RX-range
118-136 / 136-174 / 400-480 MHz
TX-range
144-148 / 438-450 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM
Sensitivity
0.18 µV (12 dB SINAD)
(VHF sub-band: <0.28 µV for 12 dB SINAD)
Selectivity
12 kHz (-6 dB), 28 kHz (-40 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 2.5-6 / 2.2-6 W (depending on voltage), Low: 0.5 / 0.5 W, El: 50 / 50 mW

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
6 or 9 V battery pack or 5.5-16V DC external
Current drain RX
25-115 mA (depending on configuration)
TX
300 mA-1.7 A

Physical

Dimensions (w×h×d)
54 × 1195 × 437 mm (2.13 × 47.05 × 17.20 in) with PB-39
Weight
380 gr (13.4 oz) with PB-39
Form factor
Handheld
Manufactured
Between 200x and 2008 in Japan
MPN
KENWOOD-TH-D000007A(G)

Other features

Memories
200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Alpha tags. Built-in 1200/9600bd TNC. APRS. "Sky Command II".
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Kenwood TH-D7A(G) user manuals on eBay #ad

Reviews & stories

TH-D7A(G)

Kenwood TH-D7A(G), Handheld VHF/UHF Transceiver

Love my transceiver. Has so many features, too many to list here besides the internal TNC for running APRS portable on 5 watts. Does have a dual receive and display is compact but very useful in the setting up the radio's usefulness. If you have the TM-D700A(G) can control the mobile transceiver from the handheld transceiver remotely with a command that is called sky command.

Written by N2OBS on Oct 26, 2009

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2005
USD 450.00

Too Bad Kenwood Got Rid of this One.

Kenwood TH-D7A(G), Handheld VHF/UHF Transceiver

WOW, what a handheld!

Written by KA9MOT on Jun 8, 2010

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
USD 350.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Kenwood TH-D7A(G). Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TH-D7A(G) is around:

  • USD 139.00
Year Historic price Condition Submitted by
2009 USD 350.00 Used / Good KA9MOT
2005 USD 450.00 Used / Good N2OBS
