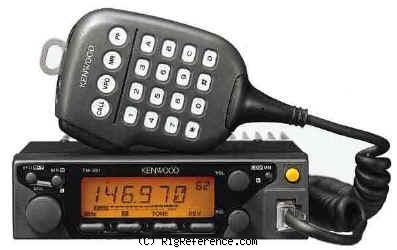

The Kenwood TM-261A is a mobile VHF transceiver. It covers 118-174 MHz for receive and 144-148 MHz for transmit. RF output power is selectable as High: 50 W, Medium: 10 W, Low: 5 W. The radio features 1 memory bank with 61 channels. Power requirements are 13.8V DC. Current drain is Max 600 mA in receive and Max 11 A in transmit. Dimensions are 40 × 140 × 160 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 61 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3397
- MPN
- KENWOOD-TM-000261A
Manuals, diagrams and brochures
- Kenwood TM-261A Instruction Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-261A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TM-261A in Good condition is around:
- USD 103 ~ USD 169
These estimates are based on the following prices:
