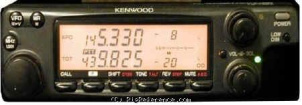

Kenwood TM-732E

Mobile VHF/UHF Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
118-174 / 410-470 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-146 / 430-440 MHz
Modulations
FM
RF-Output
High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
11-16V DC
Current drain RX
3 A
TX
Max 11 A

Physical

Manufactured
Between 1992 and 199x
Dimensions (w×h×d)
140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight
?
Form factor
Mobile

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
Twin RX
Accessories
?
MPN
KENWOOD-TM-000732E

Manuals, diagrams and brochures

Kenwood TM-732 Block Diagram submitted by RigReference
Kenwood TM-732 Instruction Manual submitted by RigReference
Kenwood TM-732 Schematic Diagram submitted by RigReference

Upload relevant documents

Show other documents.
Find the Kenwood TM-732E user manuals on eBay

Reviews & stories

I love this rig

Kenwood TM-732E, Mobile VHF/UHF Transceiver

I have owned two of these rigs. The original, bought new in 1992 is in daily use. Only issue has been a failed final (about 8 years ago). Replacement gives out 35w on 2m instead of 50, but not a major issue for me.

Second rig was a backup and sold to a friend of mine and still going strong.

If you can get a dtmf mic, that really helps with IRLP / echolink.

Nice big clear display, crossband repeater is great for using a hand held around the house. Just seen another for sale on our ebay, and seriously considering buying it.

Written by zl4te on Apr 16, 2014

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Good condition in 2014
GBP 500.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-732E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TM-732E is around:

  • GBP 410.00
Year Historic price Condition Submitted by
2014 GBP 500.00 New / Good zl4te
