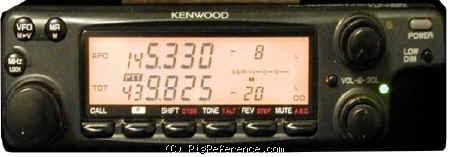

The Kenwood TM-732E is a Mobile VHF/UHF Transceiver. It covers 118-174 / 410-470 MHz for reception and 144-146 / 430-440 MHz for transmission. RF output power is selectable as High: 50/35 W, Medium: 10/10 W, or Low: 5/5 W. It features Twin RX. The transceiver requires 11-16V DC and draws a maximum of 11 A during transmit. Dimensions are 40 × 140 × 160 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-174 / 410-470 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- 3 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1992 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 3418
- MPN
- KENWOOD-TM-000732E
Manuals, diagrams and brochures
- Kenwood TM-732 Block Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-732 Instruction Manual PDF - Unknown size, submitted by RigReference
- Kenwood TM-732 Schematic Diagram PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-732E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TM-732E in Good condition is around:
- GBP 500
These estimates are based on the following prices:
