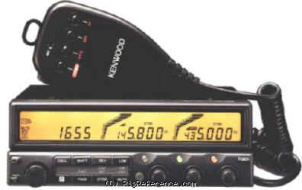

Kenwood TM-742E Mobile VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
144-146 / 430-440 MHz (10 m, 6 m or 23 cm options)
TX-range
144-146 / 430-440 MHz (10 m, 6 m or 23 cm options)
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 1.2 A
TX
Max 11.5 A

Physical

Dimensions (w×h×d)
150 × 50 × 175 mm (5.91 × 1.97 × 6.89 in)
Weight
1.50 kg (3.3 lbs)
Form factor
Mobile
Manufactured
Between 1994 and 19xx
MPN

Other features

Memories
101 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Triple RX
