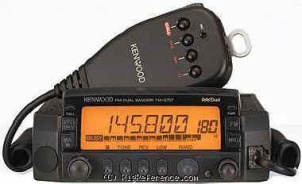

Kenwood TM-G707A VHF/UHF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
118-174 / 300-520 / 800-999 MHz (after modification)
TX-range
144-148 / 438-450 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
0.16 µV (12 dB SINAD)
Selectivity
12 kHz (-6 dB), 28 kHz (-60 dB)
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna
N-type
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
Max 1 A
TX
Max 11 A

Physical

Dimensions (w×h×d)
140 × 40 × 189 mm (5.51 × 1.57 × 7.44 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Unknown
Manufactured
Between 1998 and 199x
MPN
KENWOOD-TM-G000707A

Other features

Memories
180 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Alpha tags. CTCSS/PL. 1K2/9K6 bd packet ready
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
