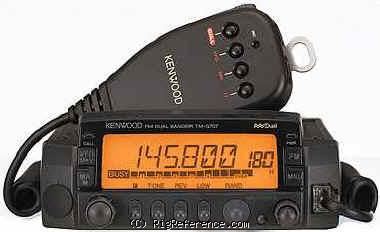

The Kenwood TM-G707A is a VHF/UHF transceiver. It covers 144-148 / 438-450 MHz for transmit and 118-174 / 300-520 / 800-999 MHz (after modification) for receive. The radio features a maximum RF output of High: 50/35 W, Medium: 10/10 W, Low: 5/5 W and 180 memory channels in 1 memory bank. It also includes Alpha tags, CTCSS/PL and 1K2/9K6 bd packet ready features. The TM-G707A requires 13.8V DC +/- 15%. Dimensions are 40 × 140 × 189 mm. Current drain is Max 1 A while receiving and Max 11 A while transmitting.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 180 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 300-520 / 800-999 MHz (after modification)
- Modulations
- AM FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 438-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- Max 1 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 189 mm (5.51 × 1.57 × 7.44 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Unknown
- Manufactured
- Between 1998 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags. CTCSS/PL. 1K2/9K6 bd packet ready
- Accessories
- -
- RigReference ID
- 3430
- MPN
- KENWOOD-TM-G000707A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-G707A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-G707A is around:
- USD 171 ~ USD 318
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
