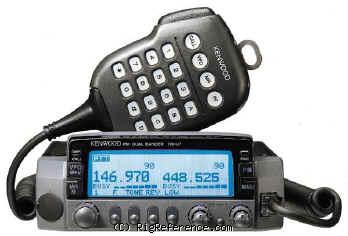

Kenwood TM-V7A

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

?

Memories

280 channels in 1 bank(s)

Receiver

RX-range

118-174 / 410-470 MHz

Modulations

AM   FM

Sensitivity

<0.16 µV (12 dB SINAD)

Selectivity

12 kHz (-6 dB), 28 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

144-148 / 430-450 MHz

Modulations

FM

RF-output

High: 50/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

Max 1 A

TX

Max 11 A

Physical

Dimensions (w×h×d)

140 × 40 × 189 mm (5.51 × 1.57 × 7.44 in)

Weight

1.20 kg (2.6 lbs)

Form factor

Unknown

Manufactured

Between 199x and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

9k6 packet ready. Alpha tags. Twin RX

Accessories

-

RigReference ID

3436

MPN

KENWOOD-TM-V000007A

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-V7A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TM-V7A is around:

• USD 95.00 ~ USD 83.00

Price History Chart

These estimates are based on the following prices:
