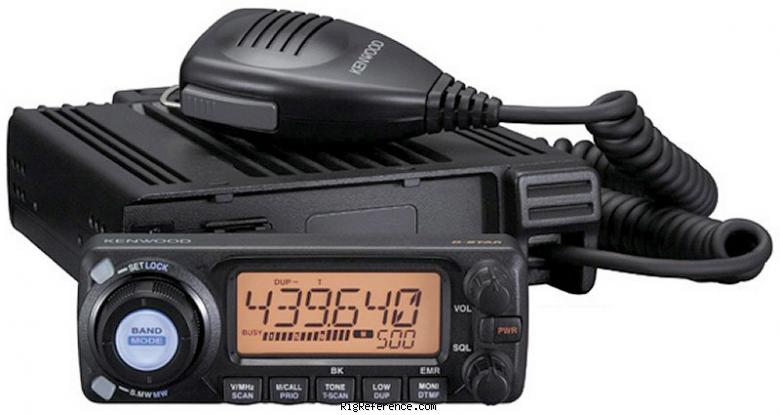

Kenwood's first D-Star rig. Looks similar to the Icom ID-800

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
512 channels in 1 bank(s)

Receiver

RX-range
118-174 / 230-252.9 / 255.1-261.9 / 266.1-270.9 / 275.1-379.9 / 382.1-411.9 /
415.1-550 / 834.1-859.9 / 889.1-914.9 / 960.1-999.99 MHz
Modulations
AM   FM   DV
Sensitivity
FM: 0.18 µV (12 dB SINAD)
DV: 0.35 µV (BER 1%)
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
60 dB
Audio output
?

Transmitter

TX-range
144-146 / 430-440 MHz
Modulations
FM   DV
RF-output
High: 20 / 20 W, Medium: 10 / 10 W, Low: 2 / 2 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC +/- 15%
Current drain RX
?
TX
Max 7.5 A

Physical

Dimensions (w×h×d)
141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in) Head: 111×40×38 mm
Weight
1.20 kg (2.6 lbs)
Form factor
Unknown
Manufactured
Between 2007 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3438
MPN
KENWOOD-TMW-000706
