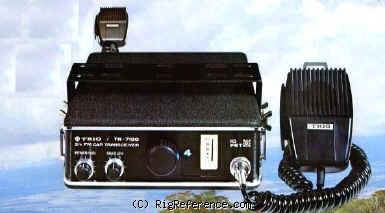

Kenwood TR-7100

VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The Kenwood TR-7100 is a VHF transceiver. It covers 144-146 MHz for both transmit and receive. The RF output is 10 W. It features 1 memory bank with 12 channels. Power requirements are 13.8V DC. Current drain is 350 mA in receive mode and 2.3 A in transmit mode. Dimensions are 60 × 170 × 230 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 12 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: 10 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 350 mA
TX: 2.3 A

Physical

Dimensions (w×h×d): 170 × 60 × 230 mm (6.69 × 2.36 × 9.06 in)
Weight: 2.10 kg (4.6 lbs)
Form factor: Mobile
Manufactured: Between 197x and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3454
MPN: KENWOOD-TR-007100

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: TR-7100 SM PDF - 12.33 MB, submitted by Berend
