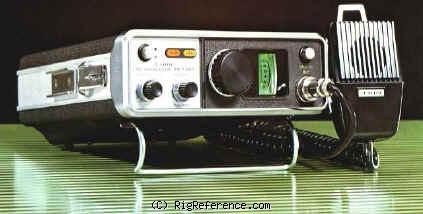

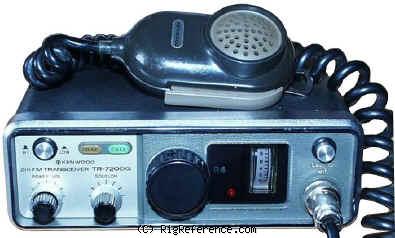

Kenwood TR-7200G

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Kenwood TR-7200G is a mobile VHF transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 10 W and Low: 1 W. It features 1 memory bank with 22 channels. Power requirements are 13.8V DC. The current drain in receive mode is 500 mA (no input) and max 3 A in transmit mode. Dimensions are 60 × 180 × 240 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 22 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 10 W, Low: 1 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 500 mA (no input)
TX: Max 3 A

Physical

Dimensions (w×h×d): 180 × 60 × 240 mm (7.09 × 2.36 × 9.45 in)
Weight: 2.50 kg (5.5 lbs)
Form factor: Mobile
Manufactured: Between 197x and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3455
MPN: KENWOOD-TR-007200G

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-7200G. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Kenwood TR-7200G is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
