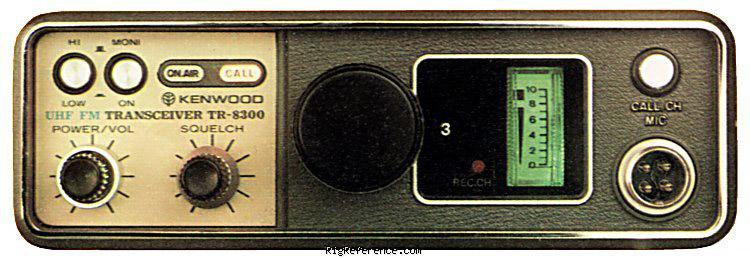

The Kenwood TR-8300 is a 70cm mobile FM transceiver. Power output may be set for 1 or 10 watts. It has a 23 channel capacity with 3 channels supplied. Standard supplied frequency coverage is 440-445 MHz transmit and 442-447 MHz receive. But the radio may be adjusted for any 5 MHz segment from 440 to 450 MHz.

General characteristics

HAM bands
70cm
Frequency stability
?
Tuning steps
Channelized
Memories
23 channels in 1 bank(s)

Receiver

RX-range
442-447 MHz
Modulations
FM
Sensitivity
0.5 µV (20 dB quieting)
Selectivity
20 kHz (-60 dB), 40 kHz (-70 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
?
Audio output
1.5 W at 10% distortion / 8 ohms

Transmitter

TX-range
440-445 MHz
Modulations
FM
RF-output
1 / 10 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
500 mA
TX
3 A max

Physical

Dimensions (w×h×d)
180 × 60 × 240 mm (7.09 × 2.36 × 9.45 in)
Weight
2.30 kg (5.1 lbs)
Form factor
Unknown
Manufactured
Between 197x and 197x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
CTCSS unit
PS-5 Power supply with built-in clock
RigReference ID
3466
MPN
KENWOOD-TR-008300

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-8300. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TR-8300 is around:

  • USD 39.00
  • AUD 27.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 40.00 Used / Fair eBay
2012 AUD 45.00 Used / Good MATMAN
