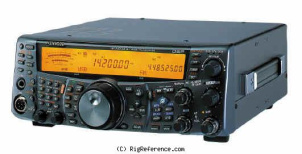

The Kenwood TS-2000 is an all band HF/VHF/UHF transceiver with exceptional features and versatility. Wide band Main HF reception includes: 30 kHz-60 MHz. On VHF/UHF you get: 142-152 and 420-450 MHz. 1240-1300 MHz is featured in the TS-2000X model. Sub band (AM/FM modes only) reception includes: 118-174, 220-512 MHz. Output is 100 watts on HF, 6 meters and 2 meters. 50 watts for 440 MHz. A built-in TCXO ensures excellent stabililty. A back lit front panel makes operation easy in any lighting conditions. This radio features keypad entry plus RIT/XIT. The TS-2000 comes with the Kenwood MC-43S hand mic.
The Kenwood TS-2000 can also be operated via computer or optional RC-2000 control head.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 300 channels in 1 bank(s)
Receiver
- RX-range
- 0.03-60 / 118-174 / 220-512 MHz
23 cm/10 W option - Modulations
- AM FM N-FM CW USB LSB FSK
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Main: >70 dBSub: >60 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 6 m / 2 m / 70 cm
- Modulations
- AM FM N-FM CW USB LSB FSK
- RF-output
- Max 100/100/100/50 W
Connections
- Antenna
- SO-239 + N-type
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- Squelched 2.6 A
- TX
- Max 20.5 A
Physical
- Dimensions (w×h×d)
- 281 × 107 × 371 mm (11.06 × 4.21 × 14.61 in)
- Weight
- 7.80 kg (17.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2000 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
Built-in 1K2/9K6 TNC
Auto-AT on HF/6m
DX-Cluster functions - Accessories
- -
- RigReference ID
- 3480
- MPN
- KENWOOD-TS-002000
Manuals, diagrams and brochures
- Kenwood TS-2000 Serv Man Supplement PDF - Unknown size, submitted by RigReference
- Kenwood TS-2000 Serv Man Supplement II PDF - Unknown size, submitted by RigReference
- Kenwood TS-2000 Serv Man Supplement III PDF - Unknown size, submitted by RigReference
- Kenwood TS-2000 Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-2000 User Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-2000 User Manual Dutch PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Very versitile shack in a box! | 6 years ago by rreh917 | |
| Good radio for the money | 6 years ago by kd4qhg | |
| SOLID PERFORMER | 7 years ago by brent redenbach | |
| TS-2000 | 15 years ago by bulldurham |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-2000 in Good condition is around:
- USD 751 ~ USD 1,252
- CAD 902
- EUR 752 ~ EUR 1,789
These estimates are based on the following prices:
