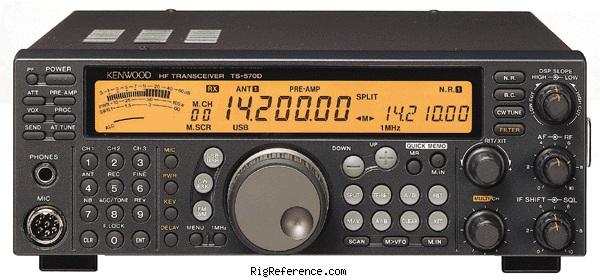

Digital Signal Processing technology is affordable to everyone with the Kenwood TS-570DG. This advanced design provides 16-bit DSP technology for superb audio, noise reduction, equalization and slope tuning. The result is dramatic interference reduction not available in analog designs. The new NR1 noise reduction system is adjustable in 9 steps increments or can be assigned to track input signal strength automatically. Both the NR1 and NR2 settings now track when changing mode groups. In SSB/AM/FM modes you can select a Hi/Low cut DSP slope tune using up to 441 possible combinations. In CW and FSK the DSP acts as VBT (Variable band Tuning) that alters the passband width for rejection of nearby signals.

This radio covers the amateur bands from 160 through 10 meters and of course features a superior general coverage receiver. Power output can be set from 5 to 100 watts. A preset auto antenna tuner and electronic keyer are built in. The menu system offers 46 types of functions for Technician thru Extra. Full and semi break-in, dedicated packet port and 57600 bps PC control. Keypad entry, 100 memories, IF shift, large LCD, Scanning and CW Auto Tune round out the many features of this transceiver. The MC-43S hand mic is included. (Please note that only one optional filter may be added).

The Kenwood TS-570SG is similar, but adds six meter coverage.
The earlier non-"G" models Kenwood TS-570D and Kenwood TS-570S are similar, but without the 3 added DSP CW filters.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
Within ±10 x 10-6 (±0.5 x 10-6 with SO-2)
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
0.5-30 / 50-54 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
AM (S+N/N 10 dB)
Less than 31.6 µV (500 kHz ~ 1.705 MHz),
Less than 2 µV (1.750 ~ 24.5 MHz),
Less than 1.3 µV (24.5 ~ 30 MHz),
Less than 1.3 µV (50 ~ 54 MHz)
FM (12 dB SINAD)
Less than 0.25 µV (28 ~ 30 MHz),
Less than 0.25 µV (50 ~ 54 MHz)
SSB/CW (S+N/N 10 dB)
Less than 4 µV (500 kHz ~ 1.705 MHz),
Less than 0.2 µV (1.705 ~ 24.5 MHz),
Less than 0.13 µV (24.5 ~ 30 MHz),
Less than 0.13 µV (50 ~ 54 MHz)
Selectivity
AM
More than 4.0 kHz (-6dB),
Less than 20.0 kHz (-50 db)
FM
More than 12.0 kHz (-6 dB),
Less than 25.0 kHz (-50 db)
SSB/CW
More than 2.2 kHz (-6 dB),
Less than 4.4 kHz (-60 dB)
Filters
?
Receiver system
FM: triple superheterodyne, other: double superheterodyne
IF-frequencies
1st: 73.05 MHz
2nd: 8.83 MHz
3rd: 455 kHz(FM only)
Image rejection
Greater than 70 dB
Audio output
?

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   USB   LSB   RTTY
RF-output
SSB/CW/FM/FSK: 100 W; AM: 25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
2 A
TX
20.5 A

Physical

Dimensions (w×h×d)
270 × 96 × 271 mm (10.63 × 3.78 × 10.67 in)
Weight
11.50 kg (25.4 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3493
MPN
KENWOOD-TS-000570DG

Manuals, diagrams and brochures

Kenwood TS-570D/S/G Instruction Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-570 Service Manual (A4) PDF - Unknown size, submitted by RigReference
Kenwood TS-570D User Manual Dutch PDF - Unknown size, submitted by RigReference
Kenwood TS-570DG Service Manual Supplement PDF - Unknown size, submitted by RigReference

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-570DG. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-570DG is around:

  • EUR 599.00
  • USD 120.00 ~ USD 169.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 EUR 600.00 Used / Mint f61112
2009 USD 535.00 Used / Good K7IN
2009 USD 725.00 Used / Mint fmann
2007 USD 600.00 Used / Good ku4gw
