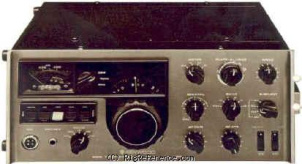

Kenwood TS-900 HF Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

2*6LQ6 finals

Frequency range

RX-range
10-80 m + WWV 15.0 MHz
TX-range
10-80 m + WWV 15.0 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
CW   SSB   FSK
Sensitivity
0.5 µV (10 dB (S+N)/N)
Selectivity
SSB/FSK: 2.2 kHz (-6 dB), 4.4 kHz (-60 dB)
CW: 0.5 kHz (-6 dB), 1.5 kHz (-60 dB) with optional CW filter
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
50 dB
Audio output
-

Transmitter

Modulations
CW   SSB   FSK
RF-Output
SSB: 300 W (PEP input), CW: 200 W (input), FSK: 100 W (input)

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
320 × 140 × 320 mm (12.60 × 5.51 × 12.60 in)
Weight
12.00 kg (26.5 lbs)
Form factor
Unknown
Manufactured
Between 197x and 197x in Japan
MPN
KENWOOD-TS-000900

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
