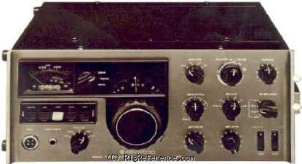

Kenwood TS-900

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-80 m + WWV 15.0 MHz

Modulations

CW   SSB   FSK

Sensitivity

0.5 µV (10 dB (S+N)/N)

Selectivity

SSB/FSK: 2.2 kHz (-6 dB), 4.4 kHz (-60 dB)
CW: 0.5 kHz (-6 dB), 1.5 kHz (-60 dB) with optional CW filter

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

?

Image rejection

50 dB

Audio output

?

Transmitter

TX-range

10-80 m + WWV 15.0 MHz

Modulations

CW   SSB   FSK

RF-output

SSB: 300 W (PEP input), CW: 200 W (input), FSK: 100 W (input)

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

320 × 140 × 320 mm (12.60 × 5.51 × 12.60 in)

Weight

12.00 kg (26.5 lbs)

Form factor

Unknown

Manufactured

Between 197x and 197x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3514

MPN

KENWOOD-TS-000900

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-900. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Kenwood TS-900 is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
