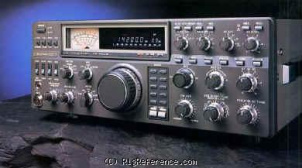

Kenwood TS-930S Desktop Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

The Kenwood TS-930S is a superlative, high performance, all solid-state, HF transceiver capable of operation in SSB, CW, FSK and AM modes. Coverage includes the WARC bands. The all solid-state 28 volt final amplifier runs 250 watts PEP input on USB, LSB, CW and FSK and 80 watts on AM mode. Despite a multitued of features, the controls are very ergonomic and easy to use.

The Kenwood TS-930SAT features a factory installed AT-930 automatic antenna tuner.

Frequency range

RX-range
0.15-30 MHz
TX-range
10-160m + WARC
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   USB   LSB
Sensitivity
-
Selectivity
-
Receiver system
Quadruple conversion superheterodyne
IF-frequencies
1st: 44.93 MHz
2nd: 8.83 MHz
3rd: 455 kHz
4th: 100 kHz
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   CW   USB   LSB
RF-Output
SSB: 250 W, AM: 25 W, FSK: 80 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 1982 and 198x
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Auto-AT option
Accessories
-

Manuals, diagrams and brochures

Kenwood TS-930S Service Manual submitted by RigReference
Kenwood TS-930S Technical Info submitted by RigReference
Kenwood TS-930S User Manual submitted by RigReference
