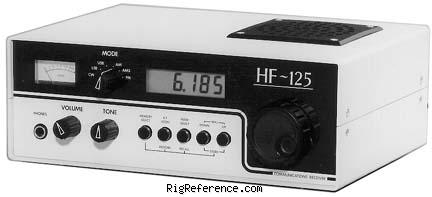

Lowe HF-125 Mobile Shortwave receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Lowe HF-125 is easy to use with controls being simple and sensible. Continuous coverage from 30 kHz to 30 MHz is provided in AM, USB, LSB and CW modes. The optional D-125 adds FM narrow mode and synchronous AM. The HF-125 comes complete with a comprehensive range of bandwidths: 2.5 kHz for SSB, 4, 7 and 10 kHz for AM reception. A 400 Hz audio filter is included for the CW listener. Tuning is accomplished through the use of 1 MHz UP/DOWN buttons and a multi-speed main tuning knob with recessed finger hole. Direct frequency entry is available with the optional K-125 keypad. Thirty memories store your favorite stations. Antenna jacks are provided for either a PL-259 (50 ohm) or single wire (600 ohm). Jacks are provided for headphones, record out, speaker, 12 VDC power and optional keypad. The Lowe HF-125 provides simplicity and great performance.

Frequency range

RX-range
30 KHz-30 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   AM-sync   FM   CW   USB   LSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50 / 600Ω

Electrical

Power requirements
13.8V DC
Current drain RX
Max 250 mA
TX
-

Physical

Dimensions (w×h×d)
255 × 100 × 200 mm (10.04 × 3.94 × 7.87 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 1987 and 1988 in Great Britain
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Lowe documents.
