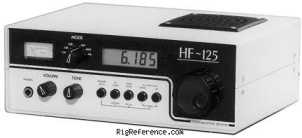

The Lowe HF-125 is easy to use with controls being simple and sensible. Continuous coverage from 30 kHz to 30 MHz is provided in AM, USB, LSB and CW modes. The optional D-125 adds FM narrow mode and synchronous AM. The HF-125 comes complete with a comprehensive range of bandwidths: 2.5 kHz for SSB, 4, 7 and 10 kHz for AM reception. A 400 Hz audio filter is included for the CW listener. Tuning is accomplished through the use of 1 MHz UP/DOWN buttons and a multi-speed main tuning knob with recessed finger hole. Direct frequency entry is available with the optional K-125 keypad. Thirty memories store your favorite stations. Antenna jacks are provided for either a PL-259 (50 ohm) or single wire (600 ohm). Jacks are provided for headphones, record out, speaker, 12 VDC power and optional keypad. The Lowe HF-125 provides simplicity and great performance.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 30 KHz-30 MHz
- Modulations
- AM AM-sync FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50 / 600Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 250 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 255 × 100 × 200 mm (10.04 × 3.94 × 7.87 in)
- Weight
- 1.80 kg (4.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1987 and 1988 in Great Britain
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3553
- MPN
- LOWE-HF-000125
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lowe HF-125. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Lowe HF-125 is around:
- USD 265 ~ USD 492
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
