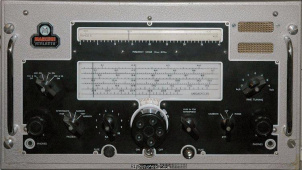

Marconi Atalanta 2207C

MF/HF Marine Receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Marine MF/HF receiver, designed for CW signals and was combined with a maritime MF or HF transmitter. Complete coverage from 15 kc up to 28 Mc was provided in 10 separate bands, with band spread scales directly calibrated in frequency for the six H.F. marine bands.

The bench-type cabinet could be mounted in a standard 19-inch rack.

Frequency range

RX-range
150 kHz - 28 MHz in 10 bands
TX-range
-
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW
Sensitivity
?
Selectivity
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 700 kHz
2nd: 85 kHz
Image rejection
?
Audio output
External speaker required

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
?

Electrical

Power requirements
Mains (115/230 V AC) or 110/220 V DC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
195 × 126 × 198 mm (7.68 × 4.96 × 7.80 in)
Weight
35.40 kg (78.1 lbs)
Form factor
Base Station
Manufactured
Between 196x and 196x in (Late sixties)
MPN
MARCONI-ATALANTA-002207C

Other features

Memories
?
Usage
Marine / Navy
Features + options
?
Accessories
?
