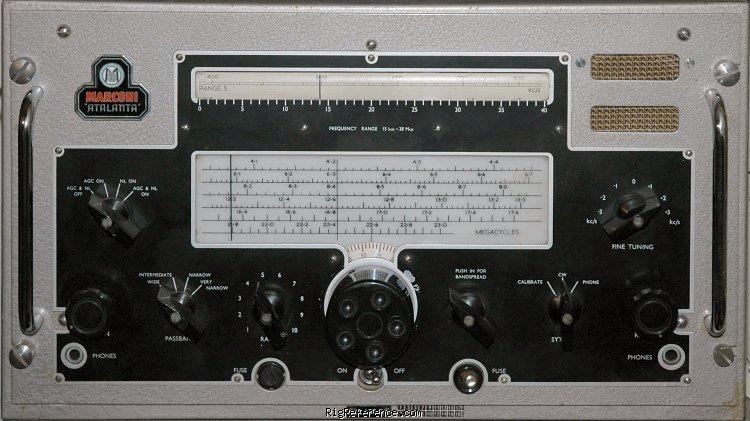

Marine MF/HF receiver, designed for CW signals and was combined with a maritime MF or HF transmitter. Complete coverage from 15 kc up to 28 Mc was provided in 10 separate bands, with band spread scales directly calibrated in frequency for the six H.F. marine bands.
The bench-type cabinet could be mounted in a standard 19-inch rack.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB)
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 150 kHz - 28 MHz in 10 bands
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 700 kHz
2nd: 85 kHz - Image rejection
- ?
- Audio output
- External speaker required
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains (115/230 V AC) or 110/220 V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 195 × 126 × 198 mm (7.68 × 4.96 × 7.80 in)
- Weight
- 35.40 kg (78.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 196x and 196x in (Late sixties)
Other features
- Usage
- Marine / Navy
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3566
- MPN
- MARCONI-ATALANTA-002207C
