National Company AGS

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

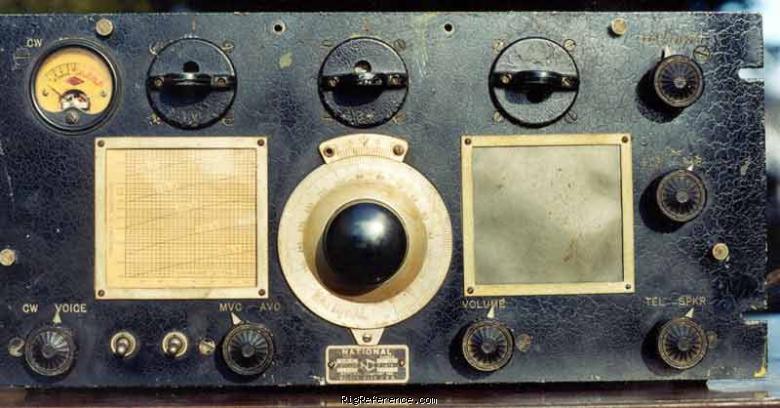

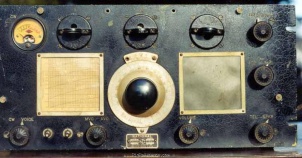

Front view (Courtesy of LA5KI) - Submitted by elmer

AGS stands for Aeronautical Ground Station, and they were originally built for use by the airline industry. It was one of the first high performance superhets commercially available. The AGS-X has a crystal filter, and bandspread coils were available for the amateur community. But because of its high cost and the depression, few found their ways into ham stations (about $295 for the AGS-X vs about $27 to $40 for a National Company FB-7).

General characteristics

HAM bands: 160m 80m 40m 20m
Frequency stability: ?
Tuning steps: ?
Memories: None

Receiver

RX-range: 1.5-20 MHz
Modulations: AM CW
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: 9 tube superhet
IF-frequencies: 495 kHz
Image rejection: ?
Audio output: External speaker or headphones

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains or 6/170V
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 1932 and 1934 in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: External power supply 5886AB
RigReference ID: 3612
MPN: NATIONAL-COMPANY-AGS

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
