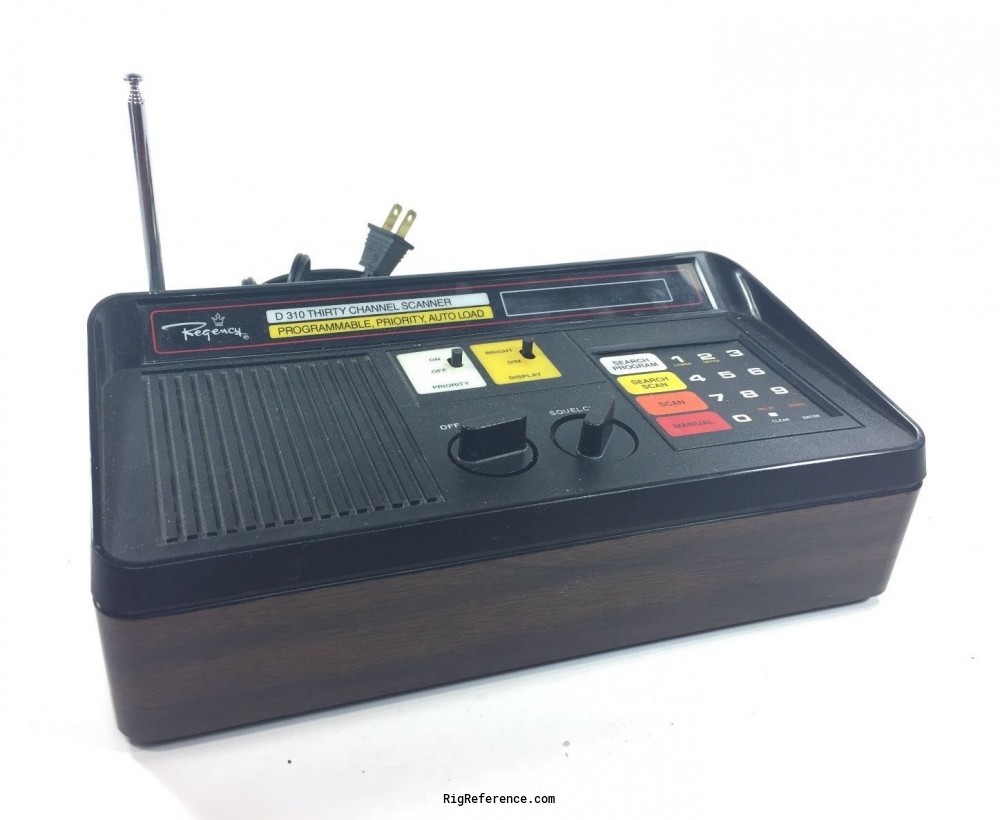

The Regency D-310 is a compact, microprocessor controlled, programmable 30 channel FM-receiver. It covers 3 bands and runs on either 12 V DC or mains.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
5 / 12.5 kHz
Memories
30 channels in 1 bank(s) @ 15 channels/second

Receiver

RX-range
30-50 / 144-174 / 440-512 MHz (USA)
Modulations
FM
Sensitivity
30-50 MHz: 0.35 µV
144-174 MHz: 0.45 µV
440-512 MHz: 0.5 µV
Selectivity
7.5 kHz @ -6 dB / 18 kHz @ -50 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
50 dB
Audio output
1 W

Connections

Antenna
TV-antenne + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
12 V DC or mains
Current drain RX
12 W max
TX
-

Physical

Dimensions (w×h×d)
262 × 85 × 178 mm (10.31 × 3.35 × 7.01 in)
Weight
1.70 kg (3.8 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
Membrane keypad
Digital 9-digit vacuum-fluorescent display
Crystal controlled reference oscillator
Accessories
-
RigReference ID
3719
MPN
REGENCY-D-000310

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency D-310. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Regency D-310 is around:

  • EUR 23.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 EUR 24.99 New / Good Eugene Colston
2020 EUR 24.99 New / Mint Eugene Colston
