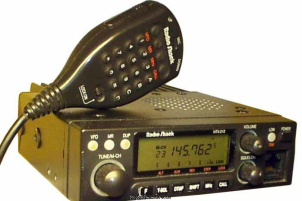

RadioShack / Realistic HTX-212 Mobile VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
136-174 MHz
TX-range
144-148 MHz
HAM bands
-
Stability
-
Tuning steps
5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
0.25 µV (12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 45 W, Low: 10 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/- 15 %
Current drain RX
-
TX
3.7-9 A

Physical

Dimensions (w×h×d)
142 × 42 × 160 mm (5.59 × 1.65 × 6.30 in)
Weight
-
Form factor
Mobile
Manufactured
Between 19xx and 19xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
CTCSS and DTMF
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the RadioShack / Realistic HTX-212. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the RadioShack / Realistic HTX-212 might be around:

  • USD 4.00
Price Condition Year User
USD 150.00 New / Mint 1994 M. Eric Carr
