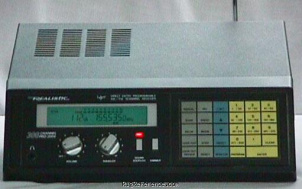

RadioShack / Realistic Pro-2004

General characteristics

HAM bands

11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m

Frequency stability

?

Tuning steps

5 / 12.5 / 30 / 50 kHz

Memories

300 channels in 10 bank(s) @ 16 channels/second

Receiver

RX-range

25-520 / 760-1300 MHz (cellular blocked in the US)

Modulations

AM   FM   W-FM

Sensitivity

AM (20 dB S/N @ 60% modulation)
25-520 MHz: 2 µV
760-1100 MHz: 2 µV
1100-1300 MHz: 3 µV
FM (20 dB S/N @ 3 kHz deviation)
25-520 MHz: 0.5 µV
760-1100 MHz: 0.5 µV
1100-1300 MHz: 3 µV
W-FM (30 dB S/N @ 22.5 kHz deviation)
25-520 MHz: 3 µV
760-1100 MHz: 3 µV
1100-1300 MHz: 10 µV

Selectivity

AM/FM: 18 kHz (-6 dB) / 30 kHz (-50 dB)
W-FM: 300 kHz (-6 dB) / 600 kHz (-50 dB)

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

1.8 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC or mains

Current drain RX

12 W

TX

-

Physical

Dimensions (w×h×d)

275 × 75 × 230 mm (10.83 × 2.95 × 9.06 in)

Weight

3.20 kg (7.1 lbs)

Form factor

Base Station

Manufactured

Between 1986 and 1988 in Japan (by GRE)

Other features

Usage

Amateur / Ham radio operators

Features + options

Sound squelch
Tape out jack
10 dB attenuator
Dimmer
Membrane keypad

Accessories

-

RigReference ID

3846

MPN

RADIOSHACK-REALISTIC-PRO-002004
