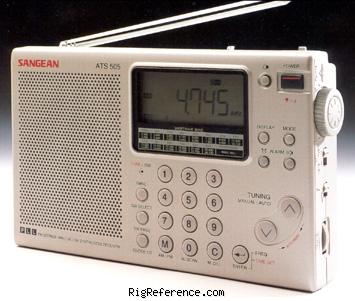

Sangean ATS-505 Handheld HF/VHF Receiver

 (4.5/5)  Add a story   View all stories (2)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.15-30 / 88-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   W-FM Stereo   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
?V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
214 × 128 × 38 mm (8.43 × 5.04 × 1.50 in)
Weight
840 gr (1.9 lbs) without batteries
Form factor
Handheld
Manufactured
Between 2000 and 200x
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

A real Steady Eddie that continues to work great.

Sangean ATS-505, Handheld HF/VHF Receiver

This unassuming radio with SSB capability has been on the market for over 13 years. Longer than most. You don't hear much about it, but obviously it continues to sell well enough for continuing production. Now, whether you praise it or condemn the ATS-505P depends on the reason you buy radios: (a.) you enjoy radios and their different personalities, or (b.) you like to rate the technical apsects of radios only to never use them again. If you're (a.) then I think you'll find the ATS-505P more than satisfactory. I do.

You *must* use a decent length of wire for antenna on shortwave -- the radio is totally deaf on its telescoping whip. But the payoff is huge: when you do the amount of signals that come pouring in, across the entire shortwave spectrum, SSB included, will make your heart light up with joy. You'll want to throw away all your other shortwave radios. Not to mention the ATS-505P has a good, powerful audio stage. It really pushes the sound.

True enough, there's no 'serious' selectivity, no I.F. filters to choose when using SSB, but it still doesn't detract from the experience -- when using a good wire external antenna. The sideband signals sound good, they come in strong, the BFO is almost completely stable, there's no real reason to gripe about a technical aspect.

The radio is decent-sized, has a comfortable tuning knob (which now, on the newer version, doesn't mute or "chuff") and the display has very large, easy to see characters. In summary the ATS-505P is a great buy for the price. If you want save $40 then go to Radio Shack and get their branded model of the exact same radio, the 20-629. Its worth it. Unless you're total crank. Just be sure to connect a good length of wire to the radio for a shortwave antenna. You'll be glad you did.

Written by Radio10 on Jun 17, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2013
USD 79.99

A good SWL'ing portable.

Sangean ATS-505, Handheld HF/VHF Receiver

I've got a high opinion of this radio. It's the last of the 'decent-sized portables' left on the market. As of 2013. And with the little LED tuning indicator, which will either pulse or changes color in accordance with signal strength, it reminds me of the 'traditional style' SWL'íng radio like I started with back in the 1970's.

How does it perform, you want to know? Well, once you connect a wire antenna, either directly to the extendable whip or into external antenna jack, this radio becomes a true shortwave receiving POWERHOUSE. And sounds good too. Otherwise its deaf on the extendable whip. So be sure to add plenty of wire. Don't be shy, the radio can handle it.

It does great on SSB, that's what I mainly use it for. Don't let any crackpot tell you otherwise. Anyway, yes, I really like this radio.

Written by Radio10 on Jun 21, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2013
USD 80.00
