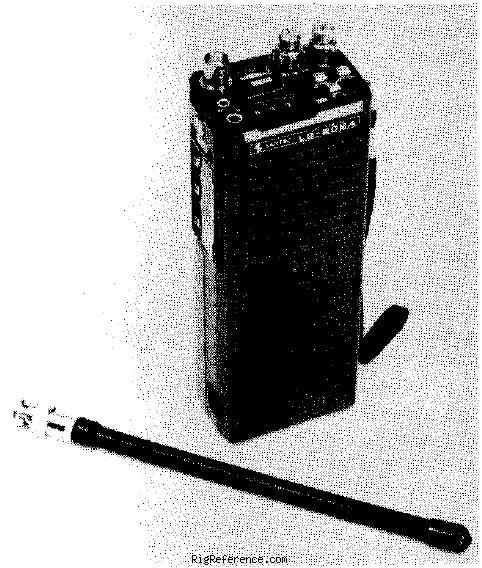

The Santec LS-202A is a handheld VHF transceiver. It covers 144-148 MHz for both receive and transmit. The receiver system is double conversion superheterodyne with IF frequencies of 1st: 10.695 MHz and 2nd: 455 kHz. RF output power is selectable between High: 3.5 W (10.8 V) and Low: 0.5 W (10.8 V). Audio output is 400 mW @ 10% THD. The LS-202A features a 1750 Hz tone and repeater shift +/- 600 Hz. It weighs 450 gr with battery and antenna. Dimensions are 178 × 64 × 51 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM USB LSB
- Sensitivity
- 0.25 µV (10 dB S/N)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.695 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 400 mW @ 10% THD
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM USB LSB
- RF-output
- High: 3.5 W (10.8 V), Low: 0.5 W (10.8 V)
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7-12V DC (NOT 13.8V DC!) or 6 AA cells
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 64 × 178 × 51 mm (2.52 × 7.01 × 2.01 in)
- Weight
- 450 gr (15.9 oz) with battery and antenna
- Form factor
- Handheld
- Manufactured
- Between 198x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 1750 Hz tone
Repeater shift +/- 600 Hz - Accessories
- -
- RigReference ID
- 3947
- MPN
- SANTEC-LS-000202A
