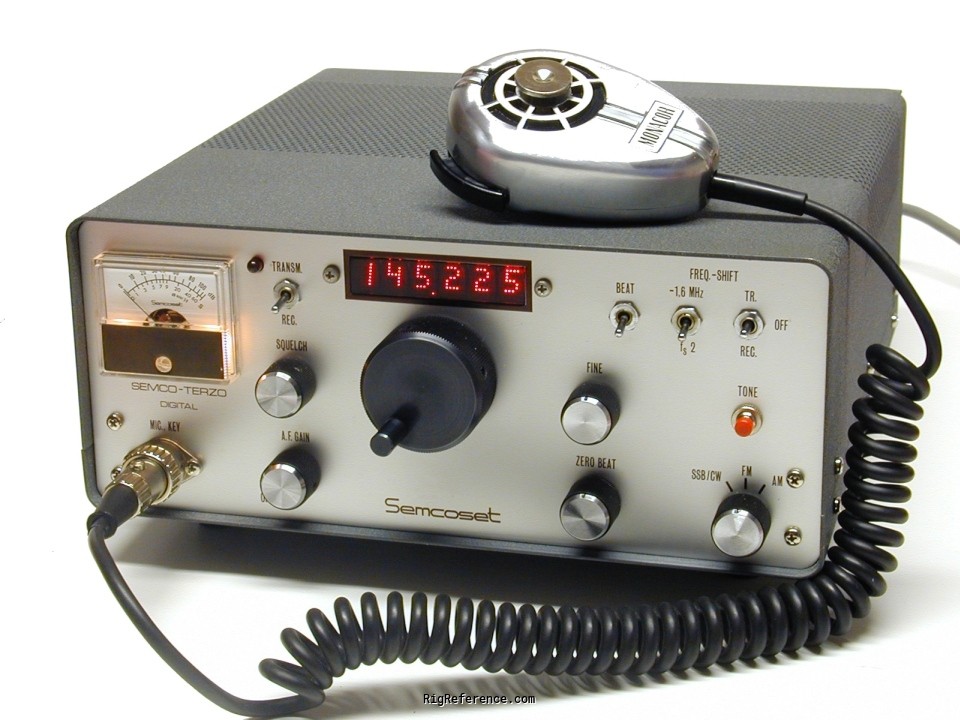

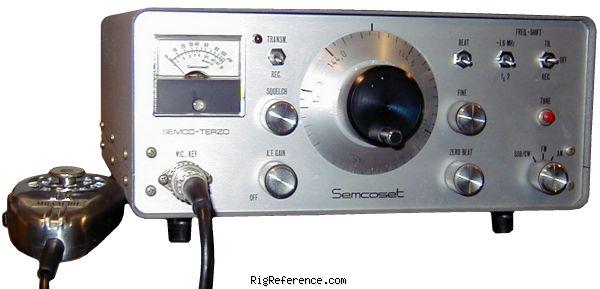

This model came in an analog and digital variant. The analog used a large tuning dial, the digital had a smaller dial and a digital (LED) display.
New price 197x in W.Germany: 2200.- DM
General characteristics
- HAM bands
- 2m
- Frequency stability
- ±300 Hz / hour after warm-up
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- AM FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- AM/SSB
5 kHz @ -3 dB, 16 kHz @ -60 dB
FM
17 kHz @ -3 dB, 46 kHz @ -60 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 80 dB
- Audio output
- 2.4 W into 4 Ohm
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- AM FM CW USB
- RF-output
- AM/SSB: 25 W (PEP), FM: 15 W
Connections
- Antenna
- SO-239
- Impedance
- 60Ω
- Other
- -
Electrical
- Power requirements
- 12V DC or mains
- Current drain RX
- ?
- TX
- Max 7 A
Physical
- Dimensions (w×h×d)
- 260 × 260 × 120 mm (10.24 × 10.24 × 4.72 in)
- Weight
- 5.70 kg (12.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in West-Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Repeater offset
S-meter - Accessories
- -
- RigReference ID
- 3958
- MPN
- SEMCOSET-SEMCO-TERZO-(ANALOG)
Manuals, diagrams and brochures
-
No documents available for this particular model.
