New price 1960 in Germany: 15000 DM

Frequency range

RX-range
1.5-30.1 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Receiver system
16 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
60 Ω

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
475 × 295 × 390 mm (18.70 × 11.61 × 15.35 in)
Weight
26.00 kg (57.4 lbs)
Form factor
Unknown
Manufactured
Between 1959 and 1961 in Germany
MPN
SIEMENS-000745-E311A

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Siemens 745 E311a user manuals on eBay

Reviews & stories

E311a I refurbished

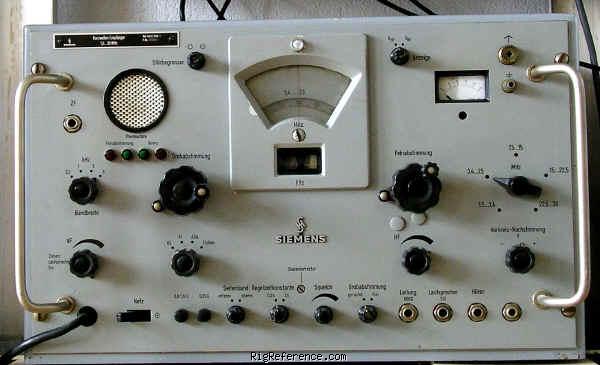

Siemens 745 E311a, HF Receiver

All 4 LO/BFO Xtals were missing as well as case. As terrible an outlook as great when box and xtals ( 400, 340, 31 and 31 kHz) found with the same supplier ( a German collectionner!).
i realigned the rig and it draws circles around any of my other more recent receivers in CW ( R7/TR7/ Orion) provided you add an additional CW audio peak filter. (Dierking GD82NF are just great for that job)

Written by f3wt on Jun 7, 2018

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Poor condition in 2013
EUR 100.00

topper

Siemens 745 E311a, HF Receiver

Uitstekend voor zijn leeftijd.
Via de fijn afstelling over individuele 100hz
een prachtmachine.
Kontroleer wel de werking van de
diverse tandwielen.

Written by ervik on Dec 28, 2014

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Okay condition in 2014
EUR 250.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Siemens 745 E311a. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Siemens 745 E311a is around:

  • EUR 82.00 ~ EUR 205.00
Year Historic price Condition Submitted by
2014 EUR 250.00 Used / Okay ervik
2013 EUR 100.00 Used / Poor f3wt
