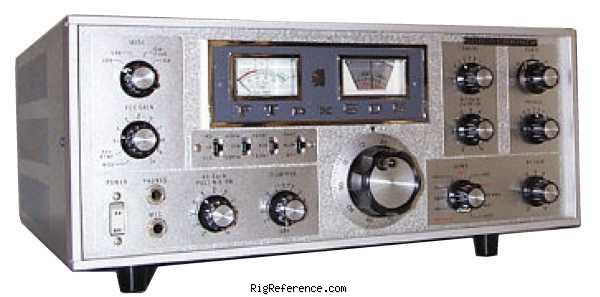

Sommerkamp FTdx-505 Desktop Shortwave Transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
10-80 m
TX-range
10-80 m
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
Tubes
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
CW   SSB
RF-Output
SSB: 560 W (PEP input), CW: 500 W (input)

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
400 × 159 × 350 mm (15.75 × 6.26 × 13.78 in)
Weight
18.15 kg (40.0 lbs)
Form factor
Base Station
Manufactured
Between 1971 and 1973 in Japan
MPN
SOMMERKAMP-FTDX-000505

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Yaesu FTdx-505 Instruction Manual submitted by RigReference
Yaesu-FT-401 / FTdx-505 Circuit diagram (01) submitted by RigReference
Yaesu-FT-401 / FTdx-505 Circuit diagram (02) submitted by RigReference
Yaesu-FT-401 / FTdx-505 Circuit diagram (03) submitted by RigReference
Yaesu-FT-401 / FTdx-505 Circuit diagram (04) submitted by RigReference
Yaesu-FT-401 / FTdx-505 Circuit diagram (05) submitted by RigReference
