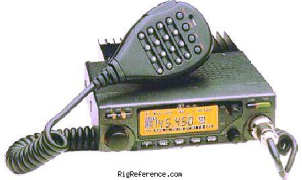

The Sommerkamp TS-147DX is a Mobile VHF Transceiver. It covers 118-136 MHz for reception and 144-146 MHz for transmission. The radio has an RF output of High: 50 W, Medium: 25 W, Low: 7 W. It features 1 memory bank with 80 channels. The TS-147DX includes DTS, CTCSS and DTMF options. Dimensions are 40 × 140 × 166 mm. It requires 13.8V DC +/-15%. Current drain is Max 600 mA in receive mode and Max 11 A in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 80 channels in 1 bank(s)
Receiver
- RX-range
- 118-136 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 25 W, Low: 7 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/-15%
- Current drain RX
- Max 600 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 166 mm (5.51 × 1.57 × 6.54 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DTS, CTCSS and DTMF options
- Accessories
- -
- RigReference ID
- 3988
- MPN
- SOMMERKAMP-TS-000147DX
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sommerkamp TS-147DX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Sommerkamp TS-147DX is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
