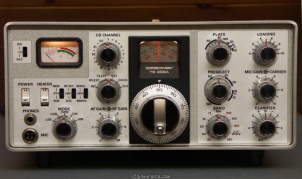

Sommerkamp TS-288A/24CH Desktop Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



This rig shares circuitry with the FT-277 and FT-101

Frequency range

RX-range
10-160m / 10-10.5 MHz (WWV)
26.965-27.255 MHz
TX-range
10-160m / 10-10.5 MHz (WWV)
26.965-27.255 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
CW   SSB
Sensitivity
AM: 2 µV (10 dB S/N)
SSB/CW: 0.5 µV (10 dB S/N)
Selectivity
AM/SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
CW (option): 600 Hz (-6 dB), 1.2 kHz (-60 dB)
Receiver system
X-TAL
IF-frequencies
-
Image rejection
>50 dB
Audio output
-

Transmitter

Modulations
CW   SSB
RF-Output
AM: 80 W (input), 50% duty cycle (slightly lower on 10m), SSB: 260 W (PEP input), CW: 180 W (input)

Connections

Antenna
SO-239
Impedance
50/75 Ω

Electrical

Power requirements
13.8V DC or mains
Current drain RX
0.5 A
TX
Max 21 A

Physical

Dimensions (w×h×d)
340 × 153 × 285 mm (13.39 × 6.02 × 11.22 in)
Weight
15.00 kg (33.1 lbs)
Form factor
Base Station
Manufactured
Between 1972 and 1974 in Japan

Other features

Memories
24 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
27.265-27.555 MHz XTAL option, RX and TX.
