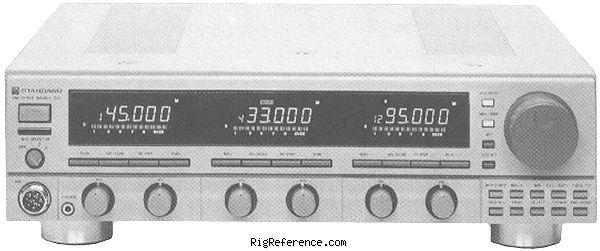

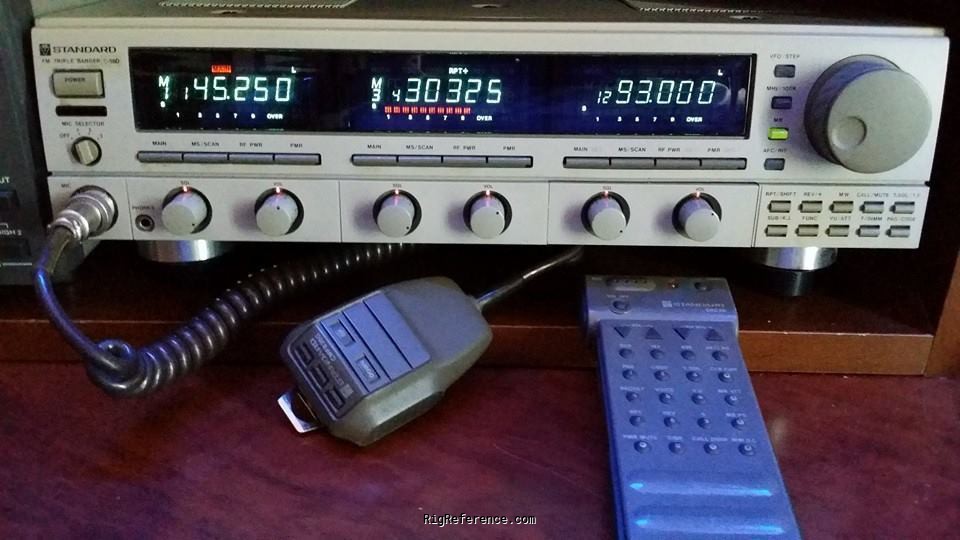

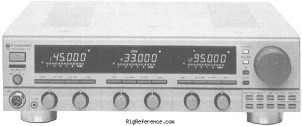

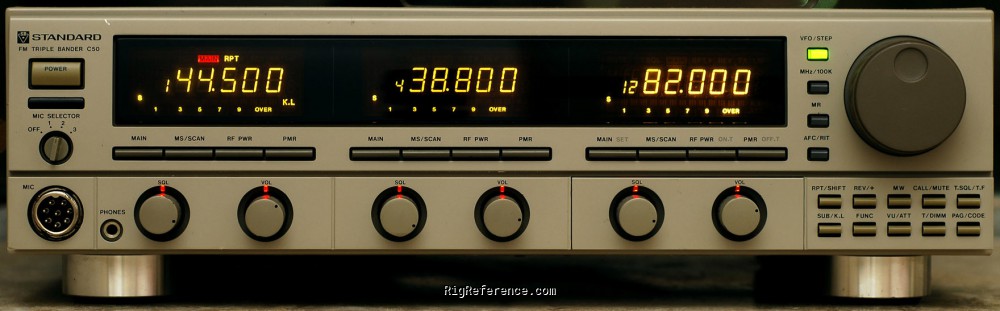

This transceiver looks more like a 1980s hi-fi tuner than an amateur rdaio rig. Still, it features 2 m / 70 cm in its unusual package and could be fitted with either the CRF-081 or CRF-301 for additional 10 m or 23 cm coverage, both giving 10 W output.

General characteristics

HAM bands
2m  70cm  23cm  10m
Frequency stability
?
Tuning steps
5 / 10 / 12.5 / 20 / 25 / 50 / 100 / 1000 kHz
Memories
33 channels in 1 bank(s)

Receiver

RX-range
144-146 / 430-440 MHz
10 m / 23 cm optional
Modulations
FM
Sensitivity
0.16 µV (12 dB SINAD)
Selectivity
12 kHz (-6 dB), 24 kHz (-60 dB)
Filters
?
Receiver system
2 m/70 cm: Double-conversion superheterodyne
IF-frequencies
1st: 21.8 MHz (2 m), 47.05 MHz (70 cm)
2nd: 455 KHz (2 m/70 cm)
Image rejection
2 m: 65 dB, 70 cm: 60 dB
Audio output
Internal speaker

Transmitter

TX-range
144-146 / 430-440 MHz
10 m / 23 cm optional
Modulations
FM
RF-output
1 / 5 / 10 W

Connections

Antenna
N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC or mains
Current drain RX
1.3 A
TX
4.5 A max

Physical

Dimensions (w×h×d)
362 × 109 × 330 mm (14.25 × 4.29 × 12.99 in)
Weight
11.00 kg (24.3 lbs)
Form factor
Base Station
Manufactured
Between 1991 and 199x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Remote control
CTCSS / DTMF options
Accessories
-
RigReference ID
4069
MPN
STANDARD-C-000050
