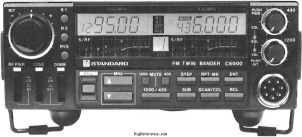

Standard C-6000 Mobile UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
430-440 / 1260-1300 MHz
TX-range
430-440 / 1260-1300 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
0.16 µV (12 dB SINAD)
Selectivity
12 kHz (-6 dB), 24 kHz (-60 dB)
Receiver system
70 cm: Double-conversion, 23 cm: Triple-conversion superheterodyne
IF-frequencies
1st: 21.8 MHz (70 cm), 157.0 MHz (23 cm)
2nd: 455 KHz (70 cm), 45.0 MHz (23 cm)
3rd: 455 KHz (23 cm)
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
High: 10/10 W, Low: 1/1 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC +/-15%
Current drain RX
Max 900 mA
TX
1.5-4.5 A

Physical

Dimensions (w×h×d)
155 × 55 × 207 mm (6.10 × 2.17 × 8.15 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 1986 and 198x in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Twin RX
Accessories
-
