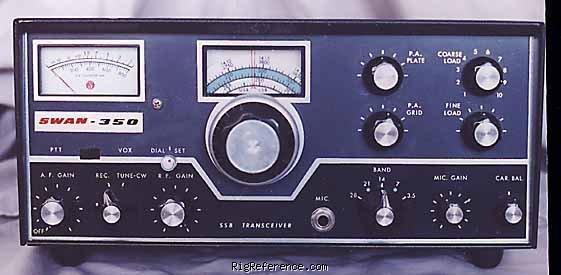

The 350 series transceiver would be considered a base station or desktop model by todays standards. It could however be used in a vehicle with the extra Model 14A Converter plugged into the back.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 10-80 m
- Modulations
- AM CW SSB
- Sensitivity
- ≤ 0.5 µV for S/N 10 dB
- Selectivity
- 2700 Hz @ -6 dB / 4600 Hz @ -50 dB
- Filters
- ?
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 3 W
Transmitter
- TX-range
- 10-80 m
- Modulations
- AM CW SSB
- RF-output
- 150 W
Connections
- Antenna
- SO-239
- Impedance
- 20/300Ω
- Other
- -
Electrical
- Power requirements
- Mains or 12-14 V DC with model 12A converter
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 330 × 140 × 280 mm (12.99 × 5.51 × 11.02 in)
- Weight
- 10.90 kg (24.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4119
- MPN
- SWAN-(CUBIC)-000350B
Manuals, diagrams and brochures
-
No documents available for this particular model.
